Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Standard In-Line Socket |
| Alternate Mfr Part Number | R-IS-K-F |
| Color | Green |
| Connector Size | Standard |
| Connector Type | In-Line |
| For Use With | Type K Thermocouple |
| Housing Color | Green |
| Maximum Operating Temperature | 220 °C |
| Minimum Operating Temperature | -35°C |
| Operating Temperature, Maximum | 220 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Thermocouple Type | K |
| UPC Code | 5056112008675 |
| Warranty | 3 Year Warranty |
Overview

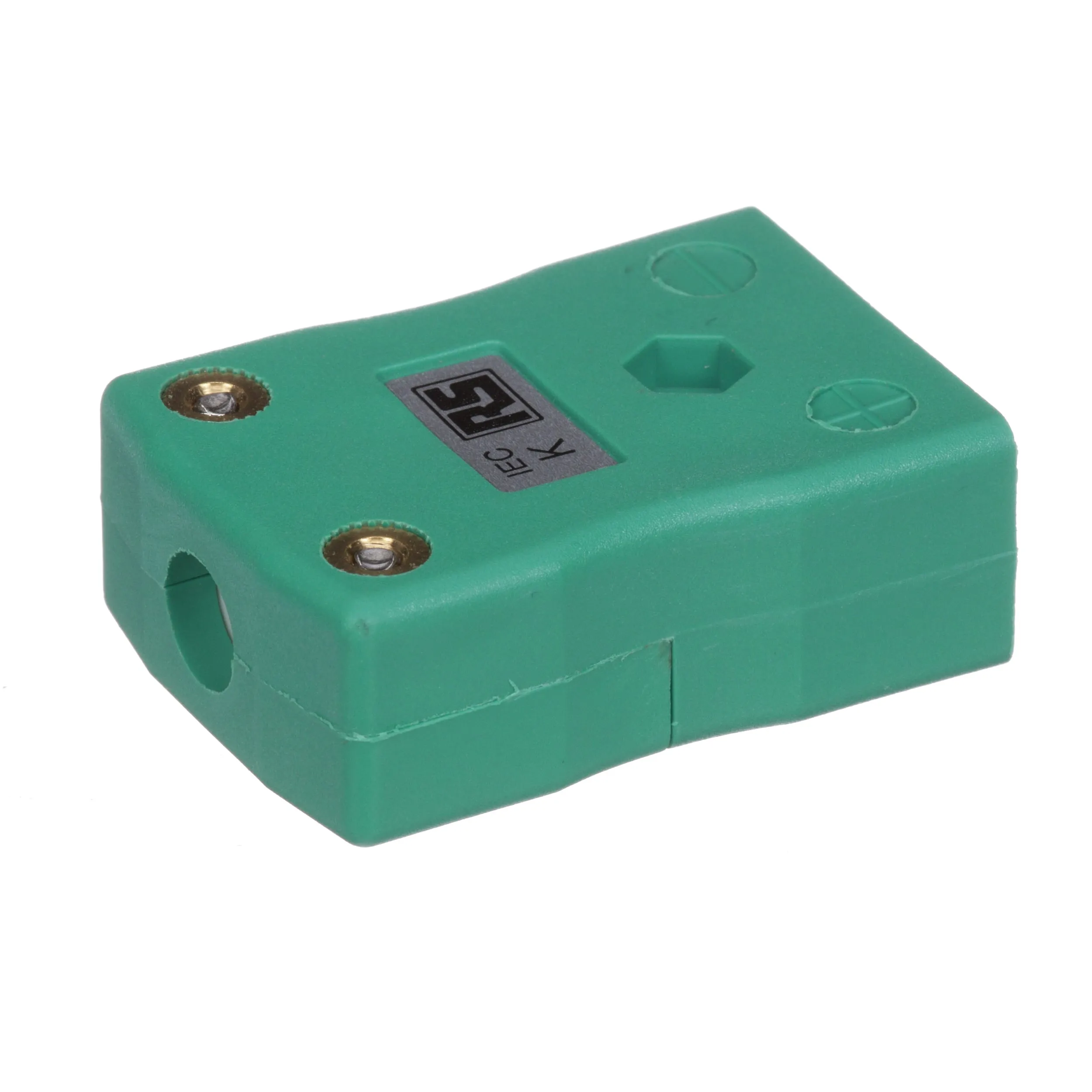

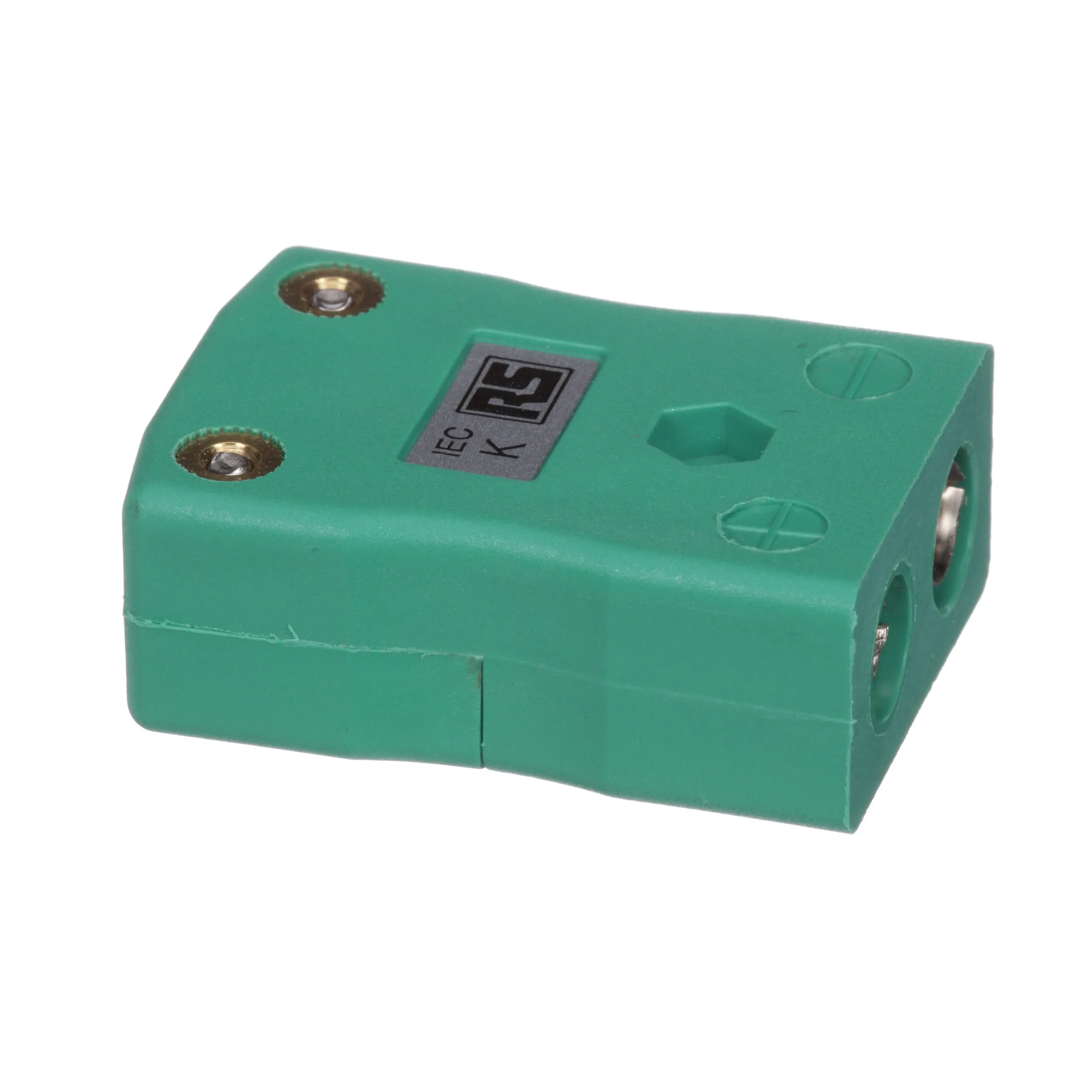

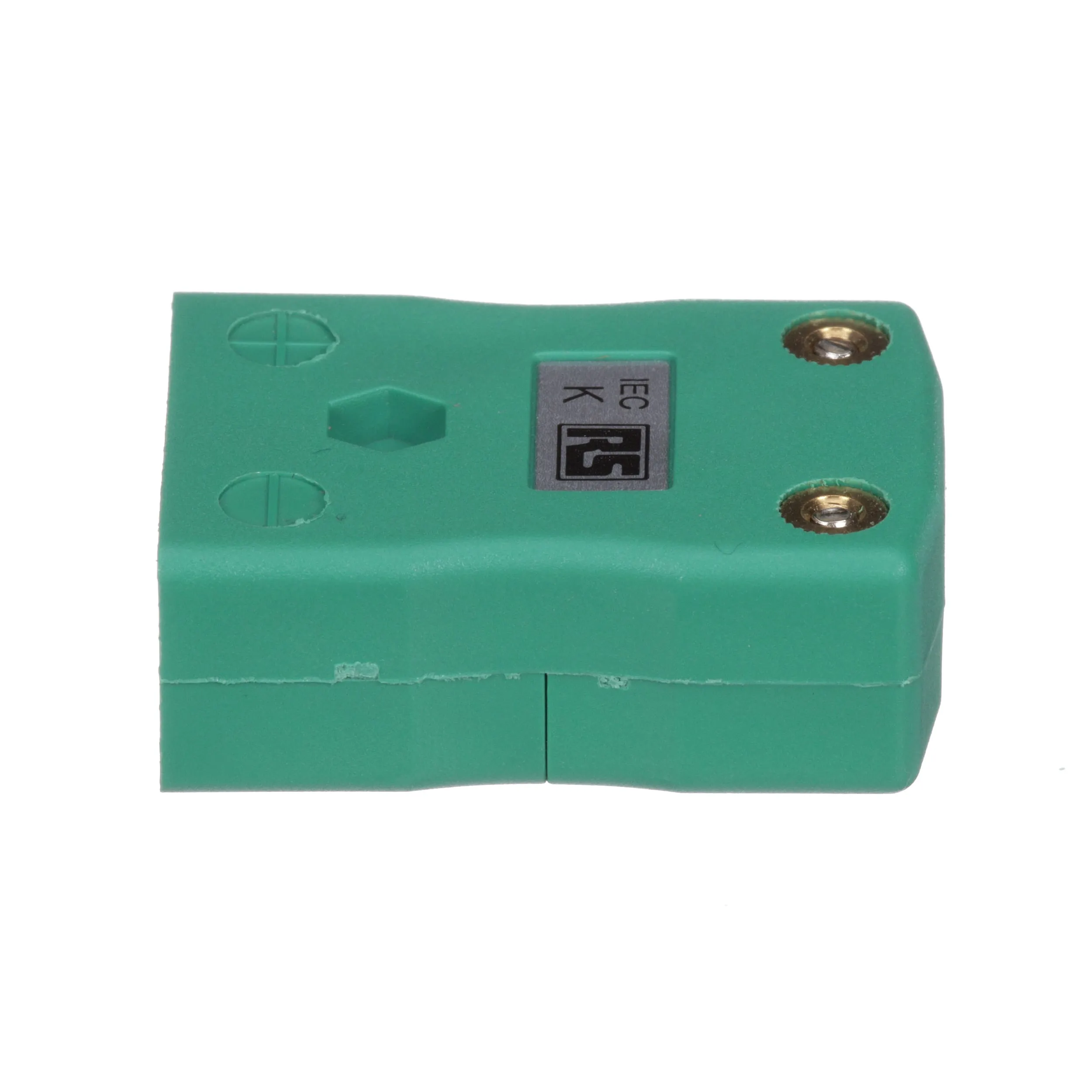

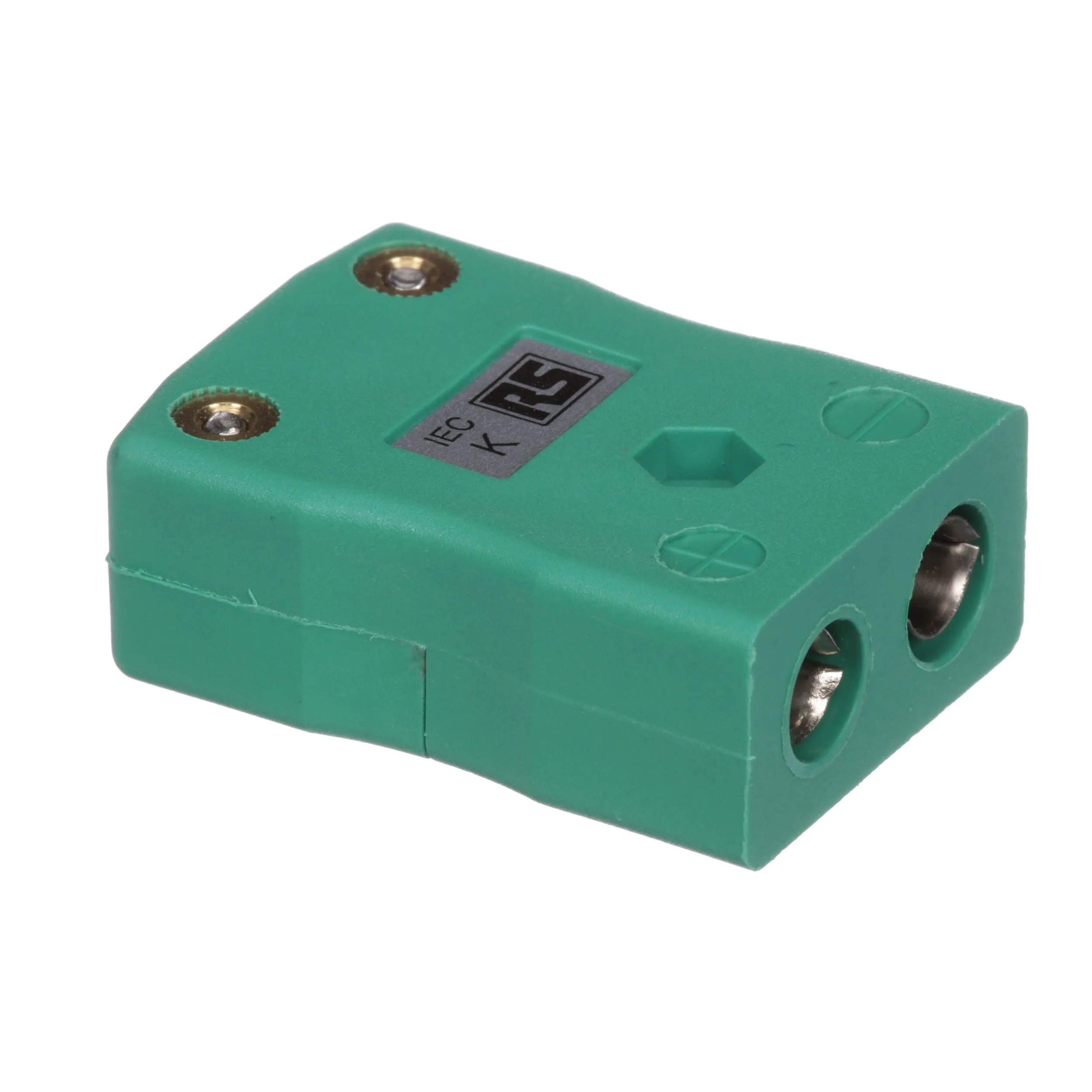

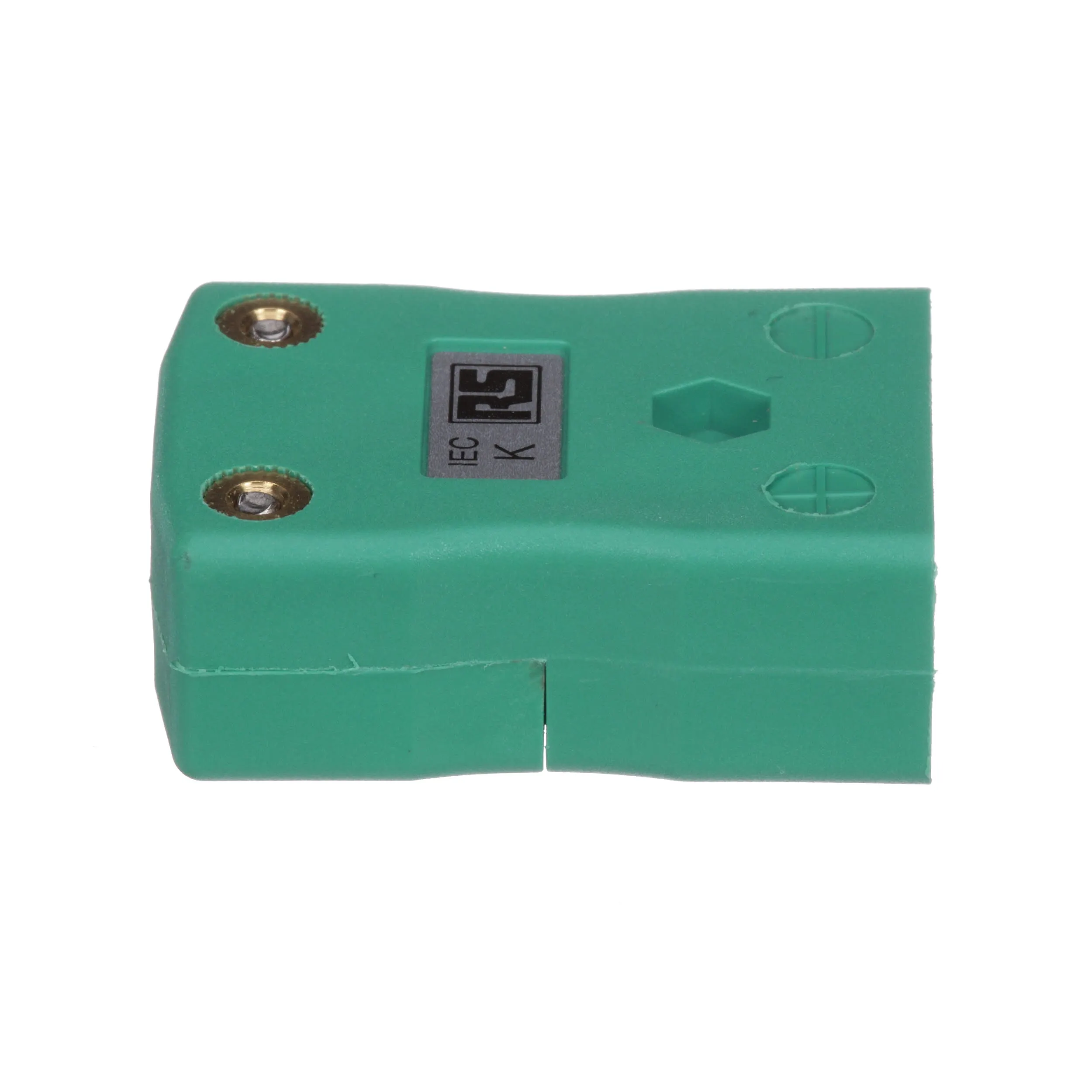

Standard In-Line Thermocouple Plugs and Sockets
Standard size sockets supplied with stainless steel brackets, suitable with RS range of Aluminum faceplates. Available in thermocouple types K, J, T, E, N, R/S, B and copper.
Rapid termination, just push wire in and tighten screw
For all applications, specially industrial processes
Color coded in accordance with IEC specification
Operating temperature 220 …C max
