Product Description:

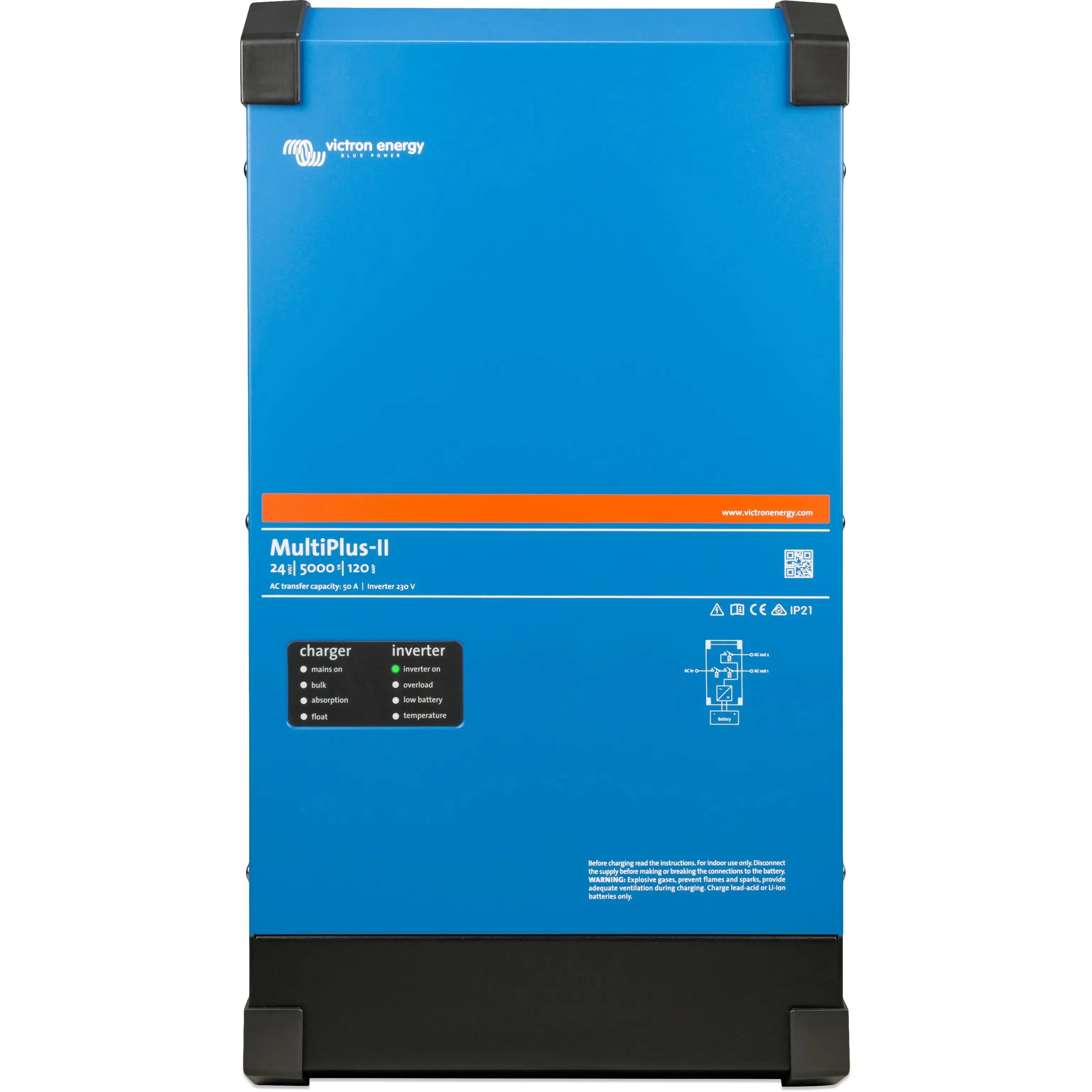

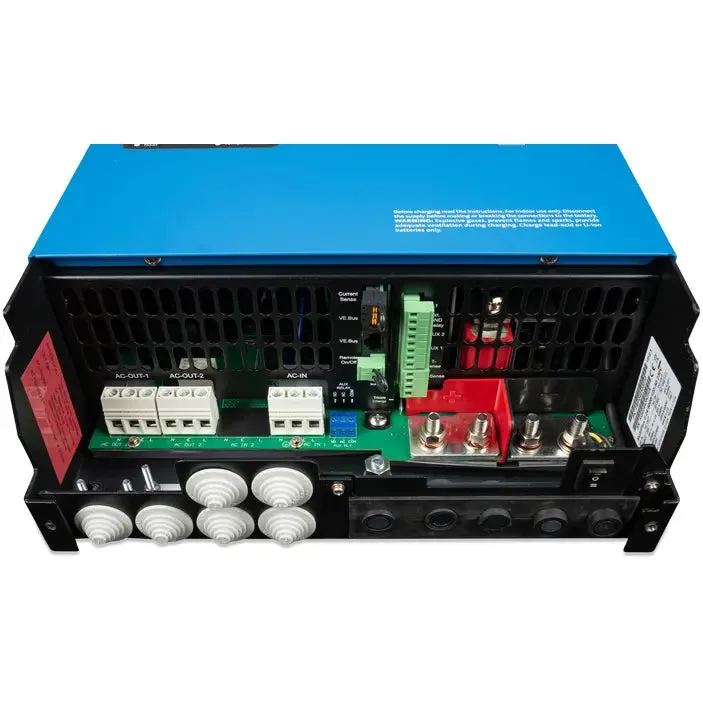

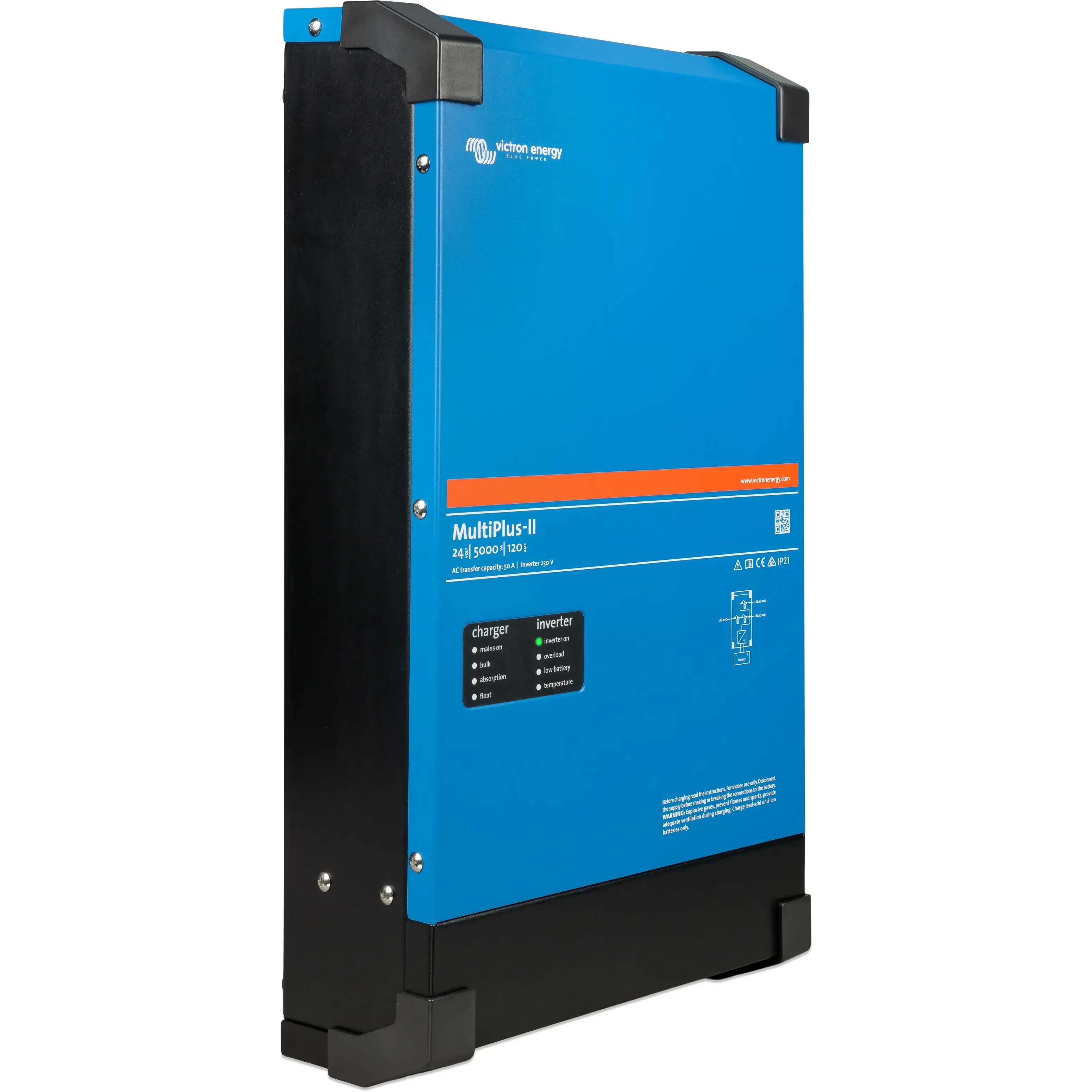

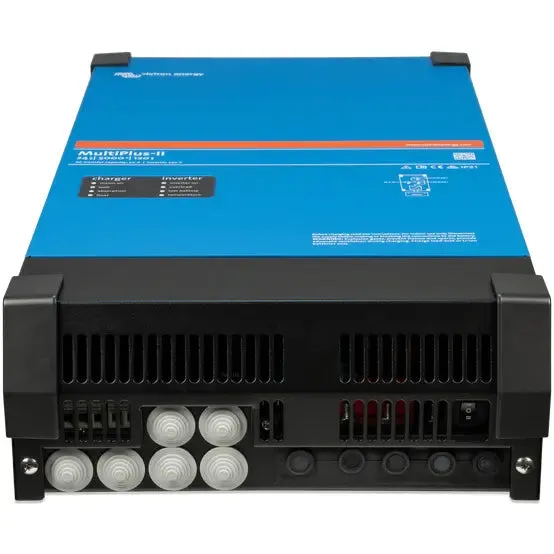

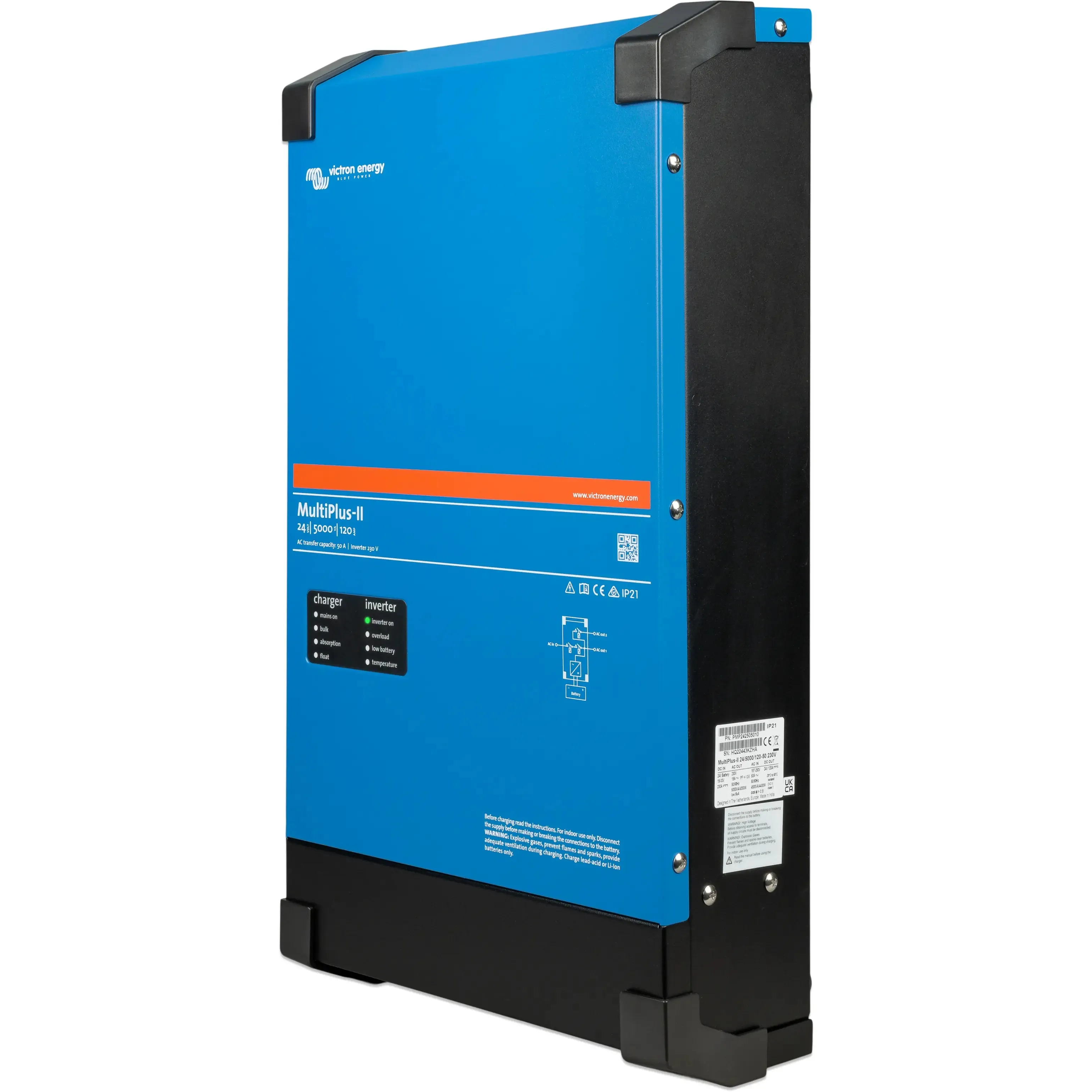

The Victron MultiPlus-II 24/5000/120-50 230V is a versatile inverter/charger designed for use in a wide range of applications. This device is ideal for powering off-grid and backup power systems, as well as for use in marine and mobile applications.

Featuring advanced technology and a durable construction, the MultiPlus-II 24/5000/120-50 230V delivers reliable and efficient power in even the most demanding environments. With its high power output, versatile compatibility, and comprehensive protection features, this device is an excellent choice for anyone looking for a top-quality inverter/charger.

Specs

Specification Value
Inverter Power Output 5000W
Nominal Battery Voltage 24V
Output Voltage 230VAC
Frequency 50Hz/60Hz (auto-detection)
Output Waveform Pure Sine Wave
Maximum Efficiency >92%
Zero-Load Power Draw <30W
Maximum Continuous RMS Current 21.7A
Peak Efficiency 94%
Charger Power 50A (at 24V)
AC Input Voltage Range 90-265VAC (adjustable)
AC Input Frequency 45Hz - 65Hz
Battery Voltage Range 19 - 33V
Charger Algorithm Adaptive 4-stage charge
Transfer Time <20 milliseconds
Communication Ports VE.Bus
Monitoring and Control VE.Bus, VE.Direct, Bluetooth Smart, and USB
Cooling Temperature-controlled fan
Operating Temperature Range -40°C to 65°C (-40°F to 149°F)
Certifications CE, RoHS

Features:

  • Pure sine wave output: The MultiPlus-II 24/5000/120-50 230V delivers a clean and stable pure sine wave output, ensuring that your sensitive electronics and appliances are powered safely and reliably.
  • High power output: With a maximum power output of 5000VA, this device can handle large loads with ease.
  • Advanced battery charging: The MultiPlus-II 24/5000/120-50 230V features advanced battery charging technology, with a charge current of up to 120A and support for a wide range of battery types and chemistries.
  • Comprehensive protection: The MultiPlus-II 24/5000/120-50 230V features comprehensive protection against overvoltage, undervoltage, overtemperature, and short circuits, ensuring safe and reliable operation in all conditions.
  • Versatile compatibility: This device is compatible with a range of battery types, including lead-acid, lithium-ion, and more, making it a versatile choice for a wide range of applications.
  • AC-coupling: The MultiPlus-II 24/5000/120-50 230V can be used in conjunction with an AC-coupled PV inverter, enabling you to use solar power to charge your batteries and power your home.
  • Easy to use: The device is easy to install and operate, with a simple and intuitive user interface and easy-to-follow instructions.
  • PowerAssist: The MultiPlus-II 24/5000/120-50 230V features PowerAssist technology, which enables it to automatically supplement power from the battery with power from the AC input when needed, ensuring that you always have enough power to meet your needs.

Whether you need a reliable inverter/charger for your off-grid power system, backup power system, or marine or mobile application, the MultiPlus-II 24/5000/120-50 230V is an excellent choice. With its advanced features, high power output, and durable construction, this device is sure to provide reliable and efficient power for years to come.
