Name: TRL-550 Rotary Laser - Electronic Level Adjustment Rotary Laser Level
SKU: 838719

Product Details ＋

TRL-550 Rotary Laser has strong waterproof function. At the same time, it has good defense performance when placed outdoors or in construction projects. It also has a wide range of applications.

TRL-550 Rotary Laser is available in two models: TRL-550HVR Rotary Laser and TRL-550HVG Rotary Laser.

TRL-550HVG Rotary Laser: Green Laser (515nm-30mw) and RL-550HVG Rotary Laser: Red Laser (635nm-10mw) options ensure easy identification and use in various lighting conditions.

TRL-550 Rotary Laser adopts electronic level adjustment system (gyroscope three independent electronic sensors), the level adjustment range of TRL-550 ROTARY LASER can reach ±5°, and the level accuracy is up to ±0.25/10m, making your measurement more reliable.

When using LP500, the dimensions of TRL-550 Rotary Laser are: length227 Width227height241(mm). The working radius can reach 500 meters; when using LP700, the working radius is 400 meters, which is very suitable for large-scale engineering projects.

TRL-550 Rotary Laser Flexible operating performance: supports laser rotation speeds of 0/150/300/600 rpm, and cooperates with silent belt drive to adapt to different working conditions. At the same time, the remote control operation distance can reach 300 meters, which improves construction efficiency.

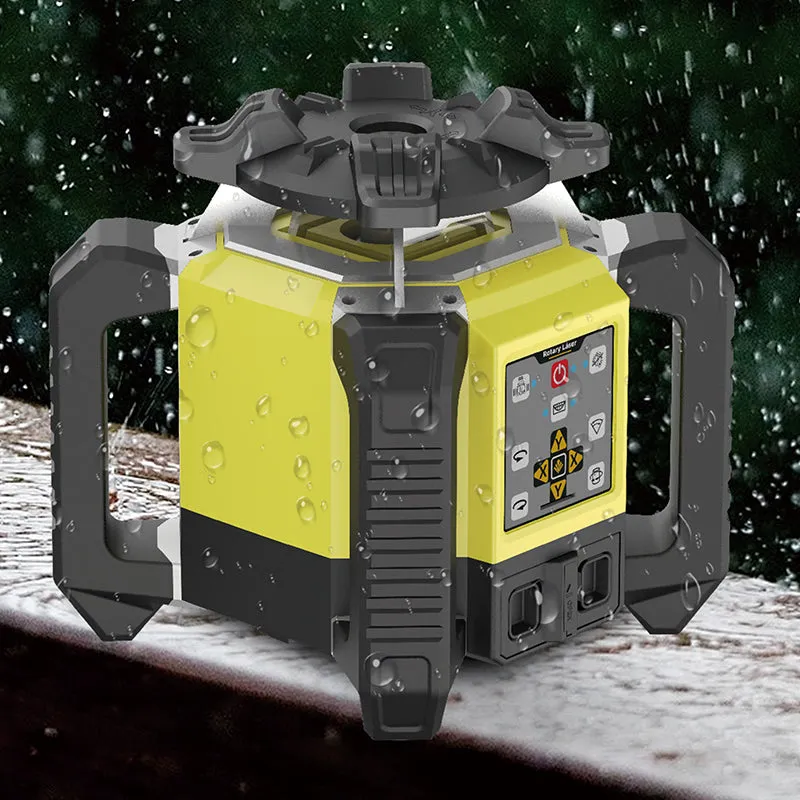

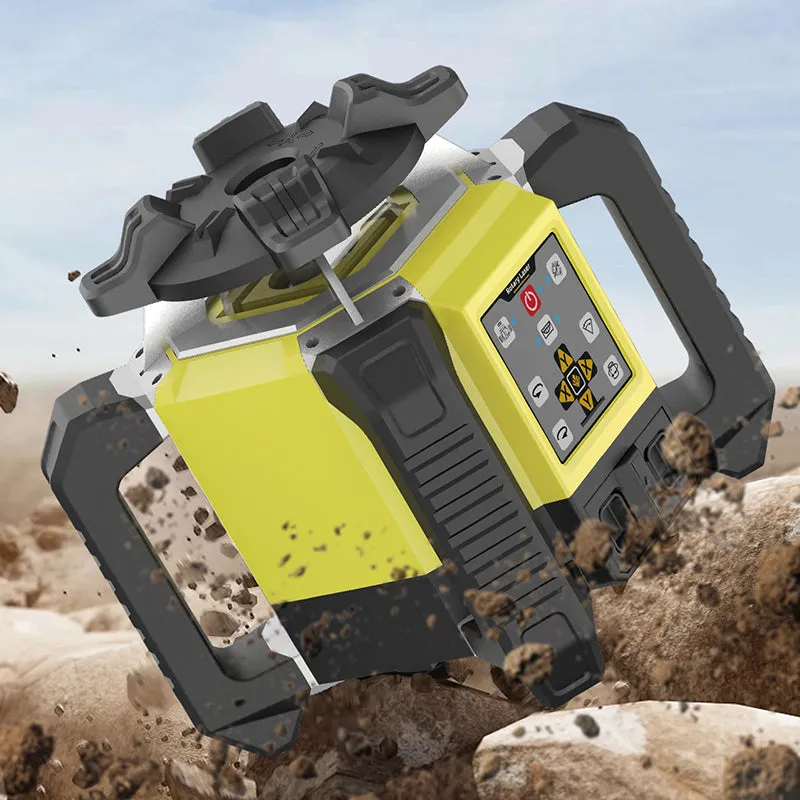

TRL-550 Rotary Laser adopts IP67 protection level, can work normally in harsh environments, and can resist falling height of up to 2 meters, ensuring the long-term stability of the equipment.

All automatic leveling series of leveling instruments are equipped with vibration measurement function the electronic device can keep the instrument in a permanently level state. Mainly used for quick leveling on vibrating surfaces and in windy weather

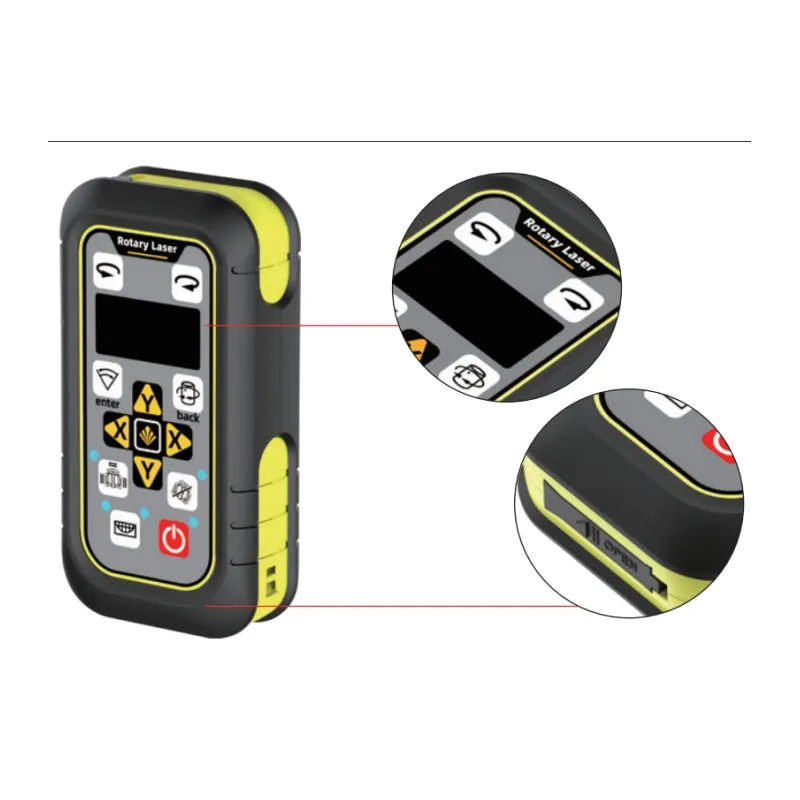

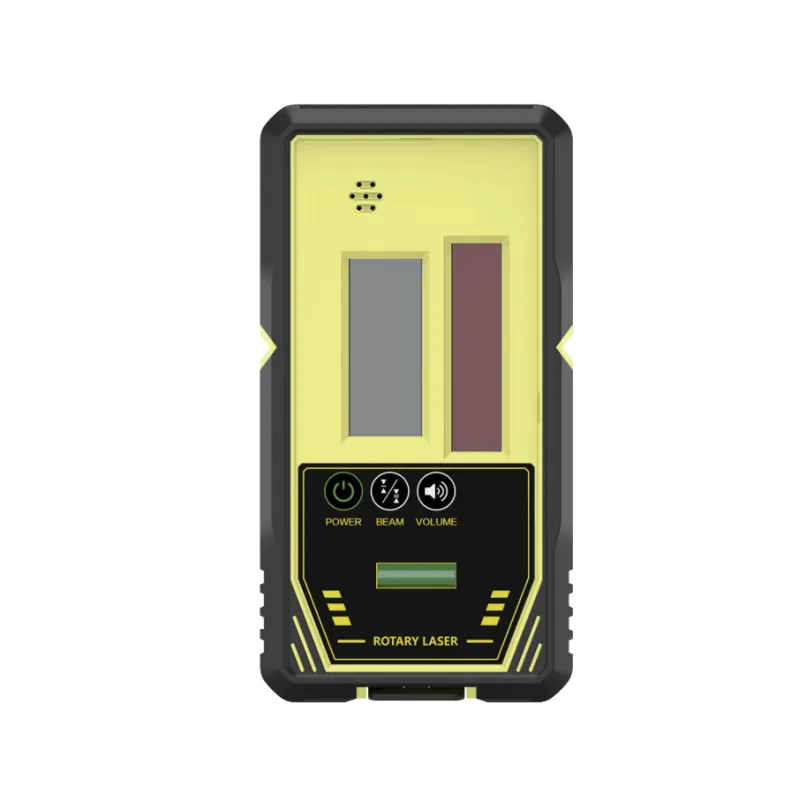

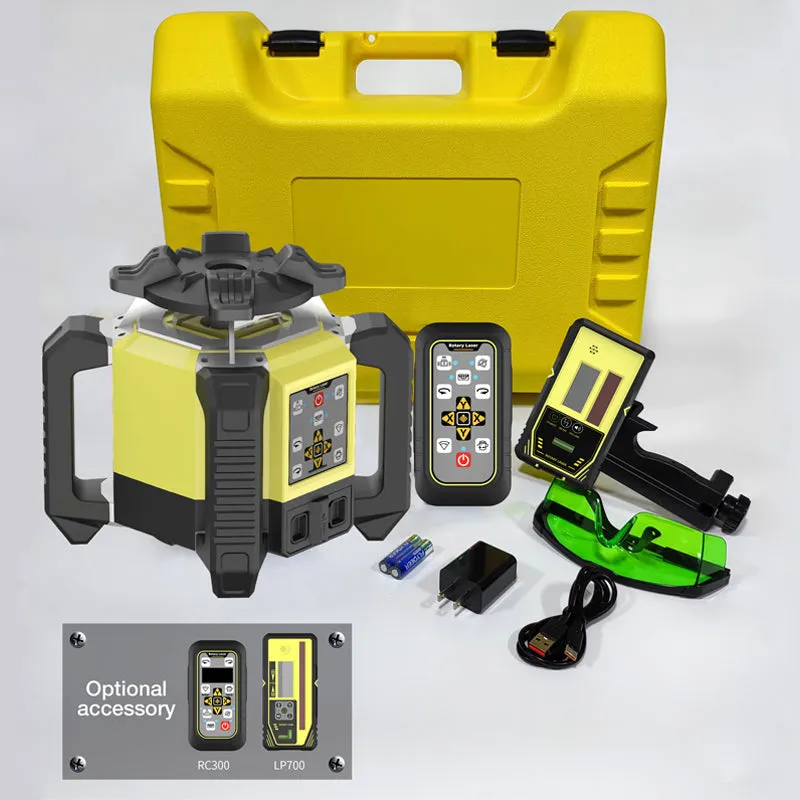

The TRL-550 Rotary Laser level kit is equipped with an RC300 remote control and an LP500 or LP700 receiver.

TRL-550 Rotary Laser Parameter Specification Table:

Laser type	TRL-550HVR	TRL-550HVG
Laser type/wavelength	Green laser (515nm-30mw) Upper/Lower	Red laser (635nm-10mw) Upper/Lower
Leveling way	Electronic leveling(gyroscope 3 individual electronic sensor)
Leveling range	±5°
Leveling accuracy	±0.25/10m
Working radius(UsingLP500)	≥500m
Working radius(UsingLP700)	≥400m
Working temperature	﹣20℃- 50℃
Laser rotation speed	0/150/300/600rpm(Silent belt drive)
Area scan	15°/45°/90°/180°
Tilt setting	Two-way
Slope operation	Use the RC200 remote control
Main unit operation	4 keys /5 lights (Sync with remote control signal)
Remote control operation	12 keys /5 lights(Synchronize with host signals Remote control distance ≥300m）
Power supply method	Lithium (Single section replaceable) AC direct supply
Lithium working time	35H(Red laser)	30H(Green laser)
Calibration method	Remote control /APP
packaging	Plastic box
size	length227 Width227height241(mm)
Protection grade	IP67
Fall height	2M（Main Machine only）
