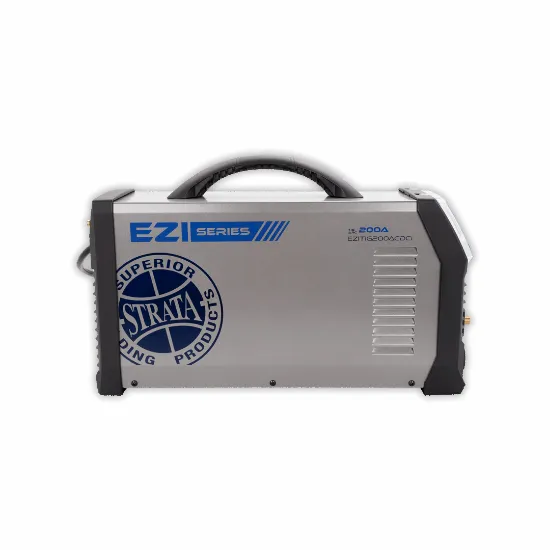

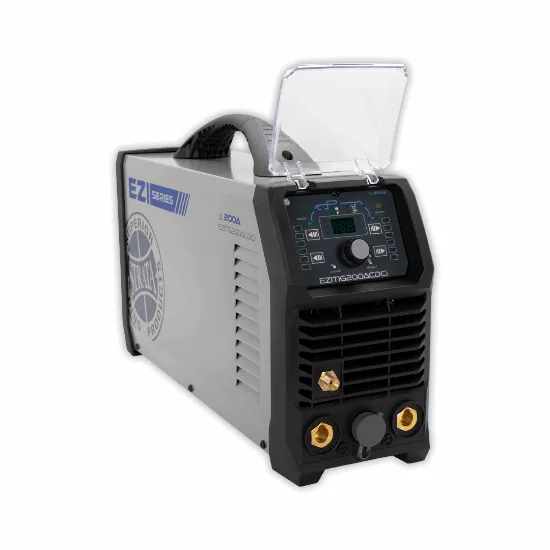

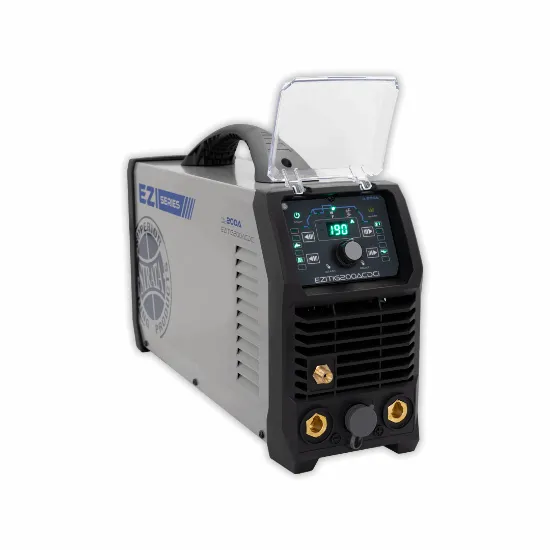

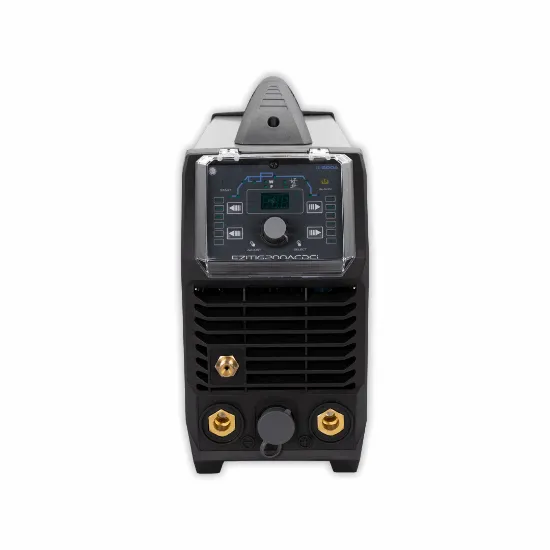

200A Single Phase Pulse TIG / ARC Inverter Welder
The EziTig200ACDCi is a powerful highly portable, easy to use machine with a 48 month warranty.
Perfect your welding art with the EziTig200ACDCi, a machine that offers both AC and DC pulse welding capabilities. With a 200A output, this welder ensures a smooth, stable arc for superior results in any aluminum welding application.
Professional TIG welding of aluminium, mild steel, stainless and so much more.
Features like AC frequency adjustment and spot welding mode provide the versatility needed for precision work.
Extreme stress tested to 440V with IP23 protection, the EziTig200ACDCi is built to last in the harshest NZ work environments.
Features:
Max Output (Tig/Arc) - 200A
Max Electrode Size - 4.0mm
Input Power Supply - 15A 230V
Spot Welding Mode:Special feature for welding very thin material without heat distortion
IGBT inverter technology for smooth & stable welding output and increased reliability.
Digital microprocessor control system for superior and dynamic arc characteristics.
AC Sine and Square Wave options with adjustable frequency up to 250hz - Versatility for excellent welding performance in any aluminium welding application.
Great control and easy to use MMA welding with adjustable arc force, hot start and auto anti-stick control.
Lift TIG and HF start modes gives versatility when welding around sensitive electronic equipment.
2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
Electronic HF TIG arc ignition system, contamination free and easy arc starting with low EMF interference .
Durable and reliable with high quality & over specified electronic components.
Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety.
Multi PCB construction is economical to service and repair compared to single PCB design.
Dual Mode Remote Control Option - digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional extra)
Wired and Wireless foot pedal control (optional extra)
Designed to work with generator power supply with protection from power surges.- 10KVA Minimum
Quick connect - tool free inlet gas fitting.
Industrial IP23 casing with front panel protection resists damage, moisture and corrosion.

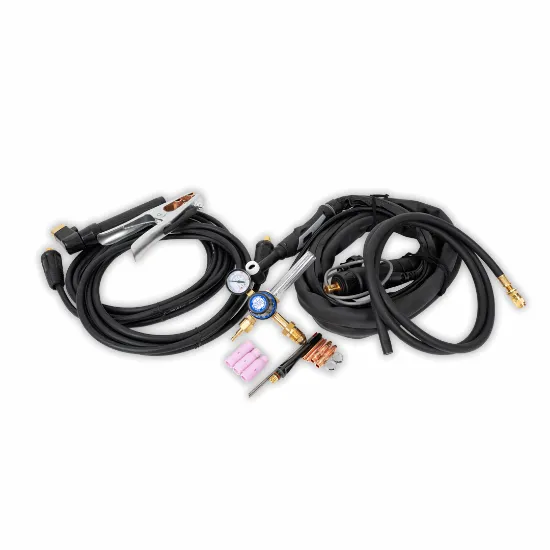

Accessories Include:
4m Earth Lead.
4m Arc Lead.
Strata Professional 4m TIG torch.
2 Stage FlowMeter, Argon Gas Regulator.
2m Quick Connect Gas Hose Set.
Lightweight & compact design, ideal for portable applications.
Model: EziTig200ACDCi
Specifications
| Input Power Supply: | 230V AC 15A 50/60Hz |
| Input Power Tolerance: | /-10% |
| Maximum Input Current: | 44A |
| Generator Capacity: | 10KVA |
| MMA O/C Voltage: | 67V |
| MMA Current Output: | 10A - 200A |
| MMA/TIG Duty Cycle: |
200A @ 20% 163A @ 60% 100A @ 100% |
| TIG Current Output: | 10-200A |
| DC TIG Duty Cycle: |
200A @ 20% 163A @ 60% 100A @ 100% |
| Insulation Class: | IP21S |
| Power Efficiency: | 85% |
| Power Factor: | 0.7 |
| Standards: | AS/IEC60974 - 1:2012 |
| MMA Rod Size: | 1.6 - 4.0mm |
| AC Frequency: | 50-250Hz |
| AC TIG Waveform: | Square Wave, Sine Wave |
| TIG Upslope/Down Slope Adjustment: | 0 - 10S |
| TIG Gas Post Flow/Pre Flow Adjustment: | 0 - 2 / 0 - 10S |
| TIG Pulse Frequency: | 0.5 - 100Hz |
| TIG Pulse Width Range: | 5 - 95% |
| AC TIG Duty Cycle: |
200A @ 20% 163A @ 60% 100A @ 100% |
| Dimensions: | 480 x 146 x 278mm |
| Weight: | 10kgs |
All Prices Include GST
