Name: RS Pro 3817407
SKU: 996633

Product Details ＋

Product Attribute	Attribute Value
Accessory Type	Gland
Alternate Mfr Part Number	XQ-154-RS
Cable Diameter	1⁄8 in.
For Use With	Temperature Probe
Material	Stainless Steel
Shop By	Factory Choice
Standards	RoHS Compliant
UPC Code	5056111993705
Warranty	3 Year Warranty

Overview

RS Pro 213573 Series — Stainless Steel Compression Glands | Parallel, Tapered & BSP, BSPT, M8, M16 & M20) Series Threads:

Corrosion-resistant BSP-threaded male thermocouple compression glands available to fit a wide range of temperature sensor probe sizes.

Features:

Thermocouple installation fittings

To suit a wide range of mineral insulated and other probe type sensors offered by RS

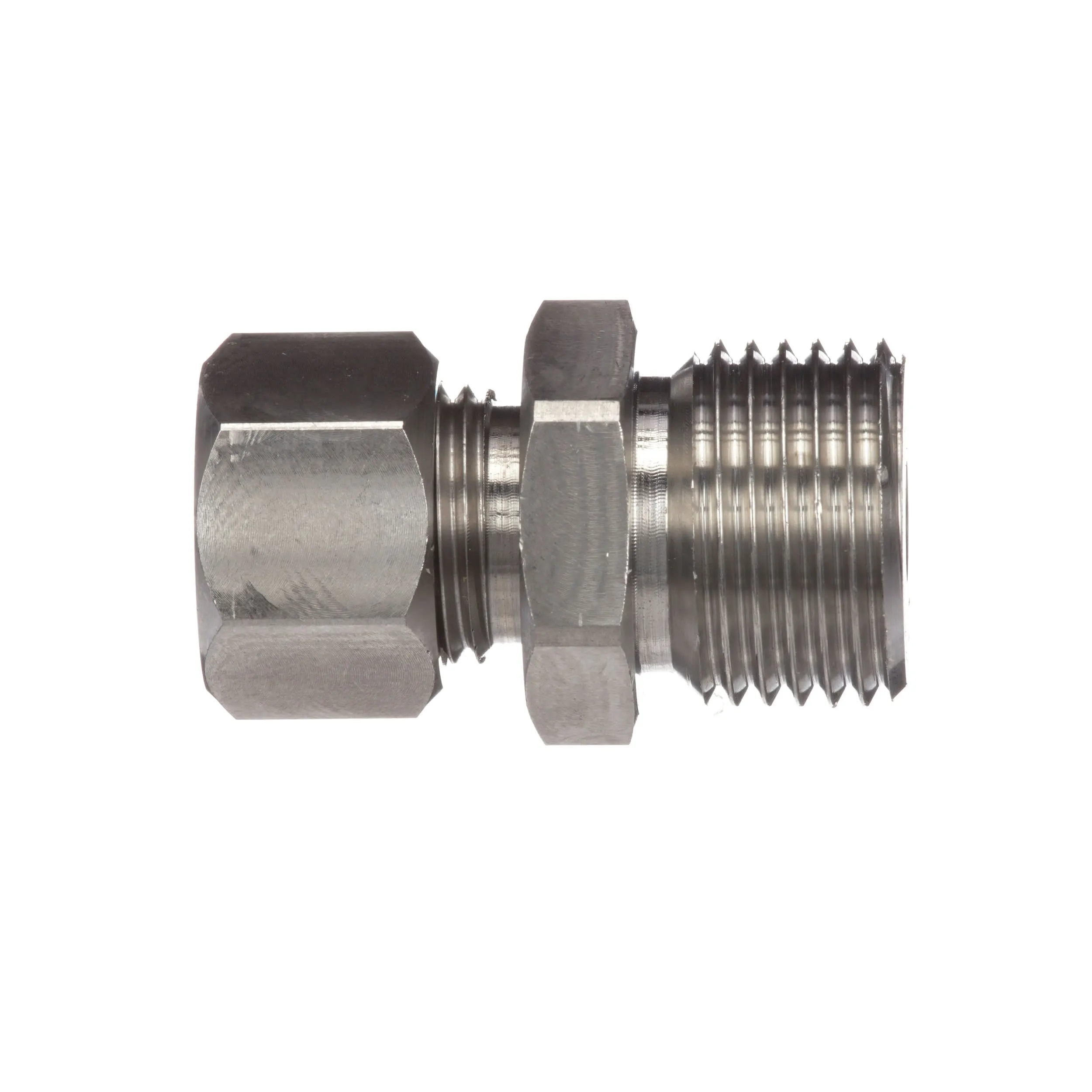

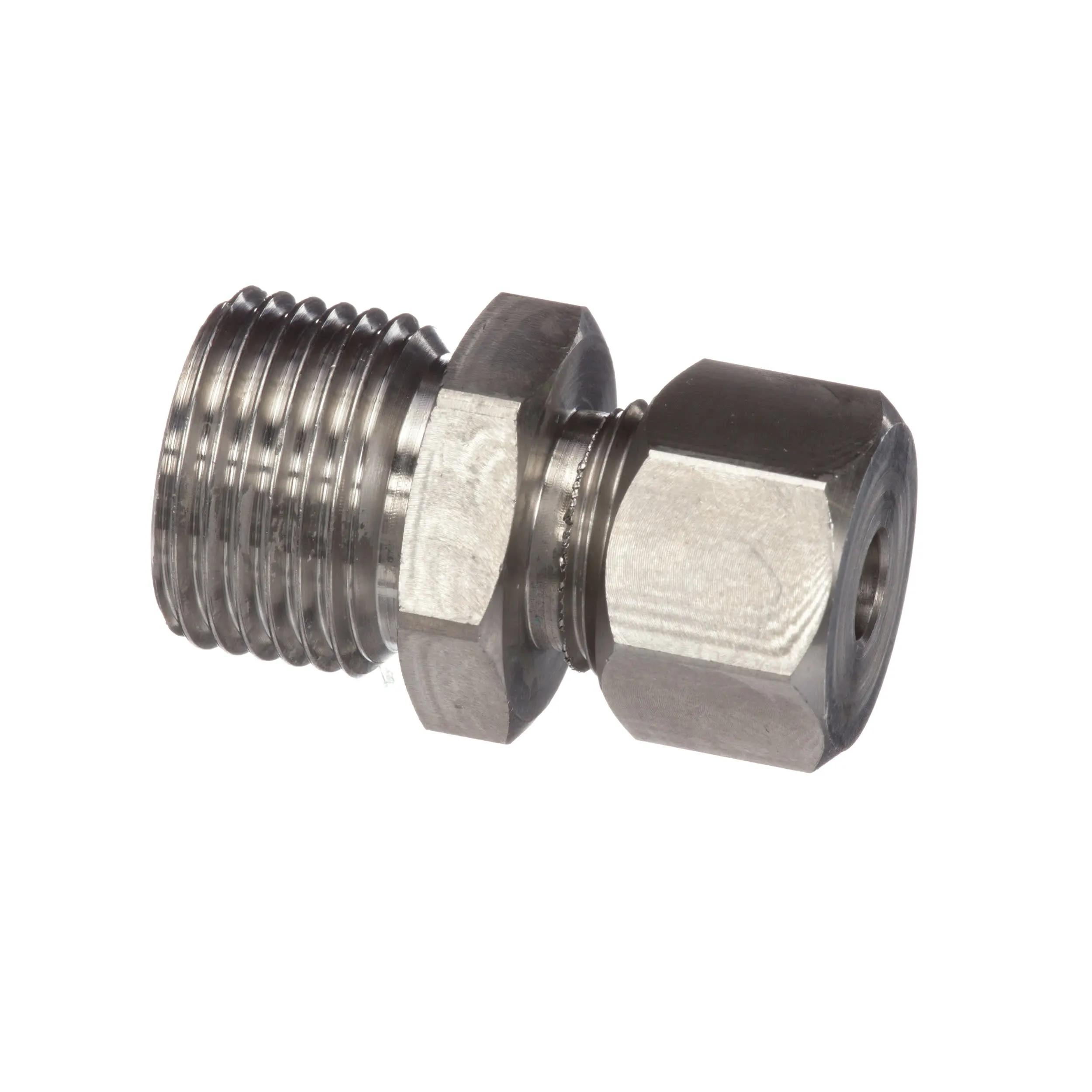

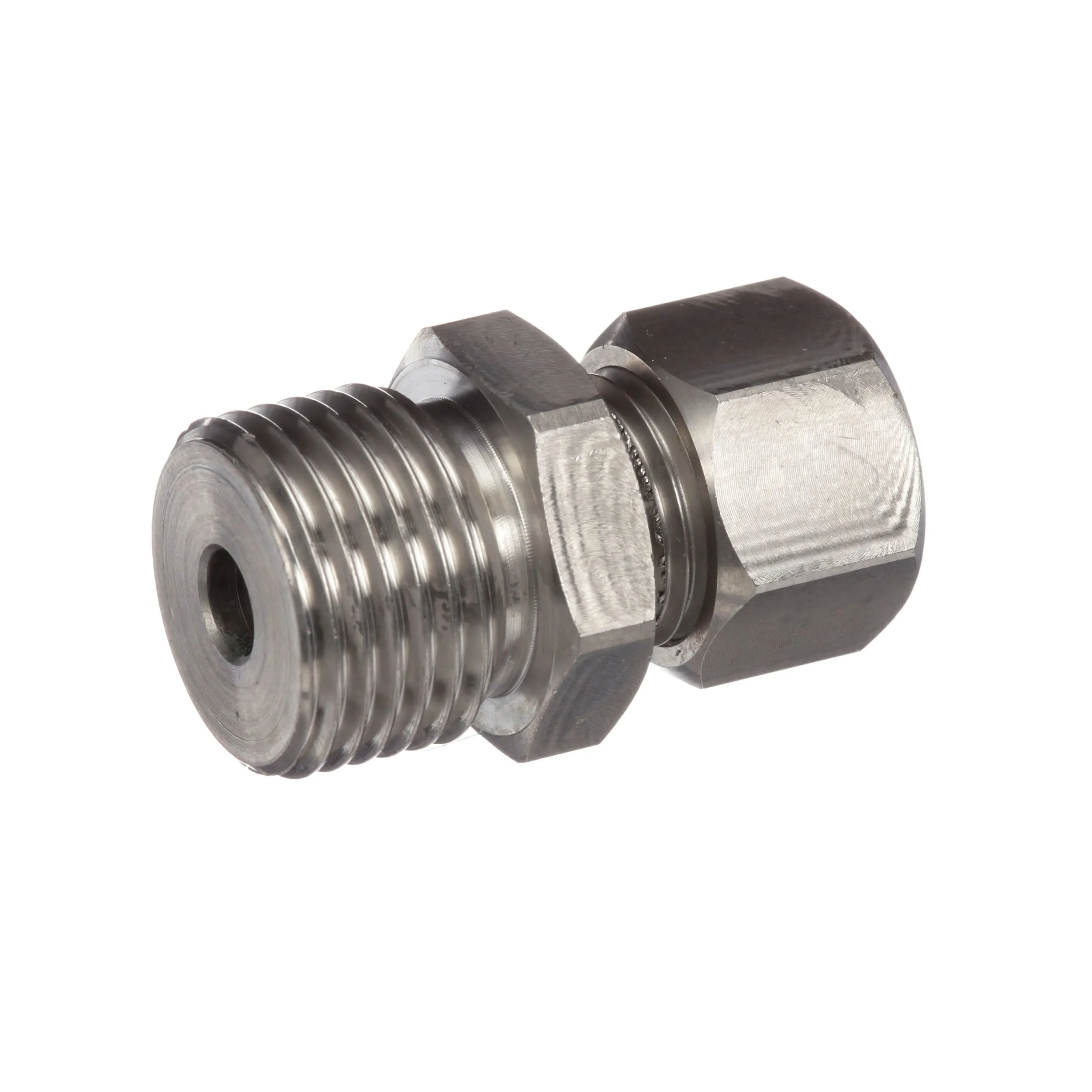

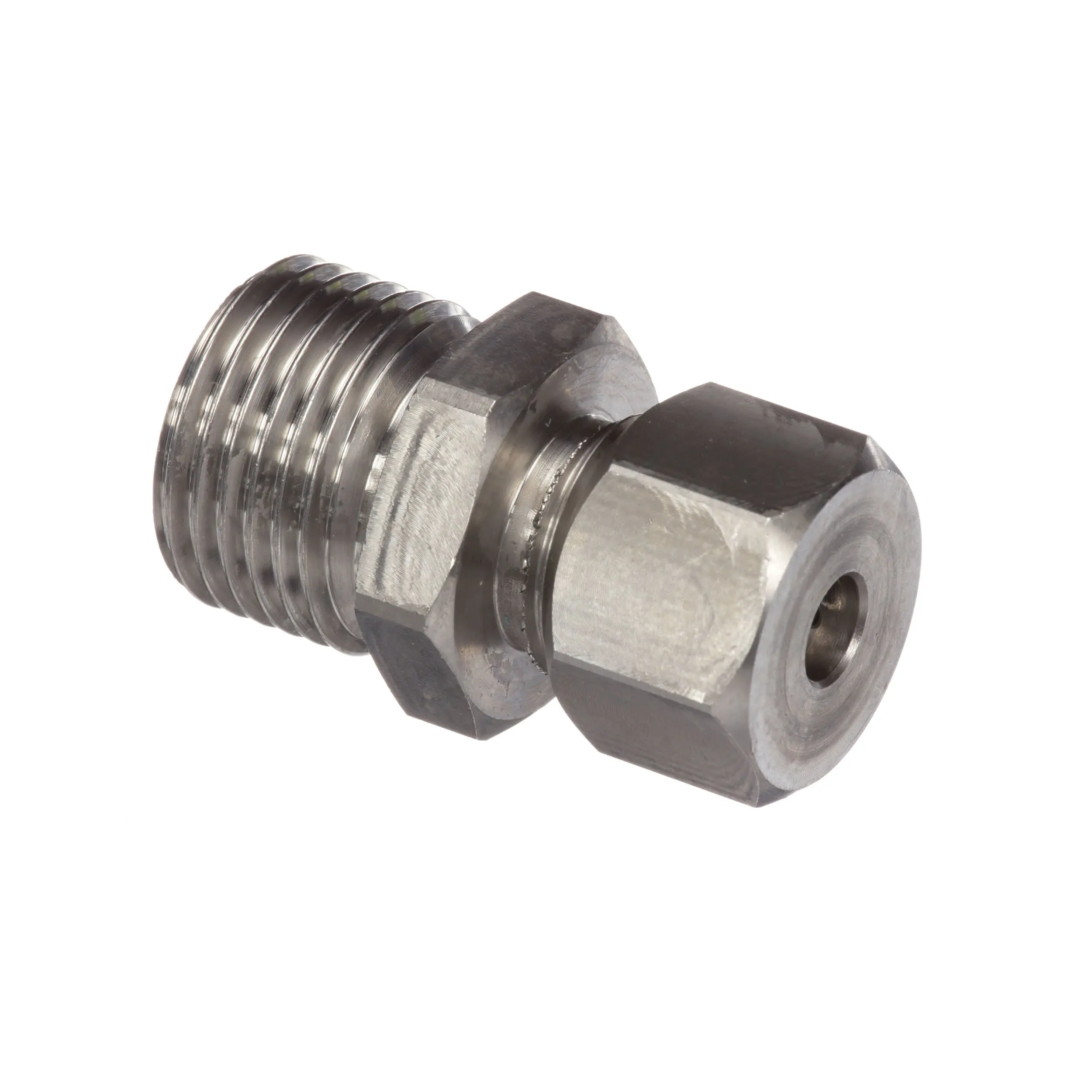

Male in-line stainless steel compression type with nut & olive

1/8”, 1/4", & 1/2” BSP parallel or BSPT tapered threads available. M8, M16 & M20 thread also available.

Suits 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm ,8.0mm, 1/8”, 1/4" or 3/16” probe diameters

Stainless steel locknuts also available
