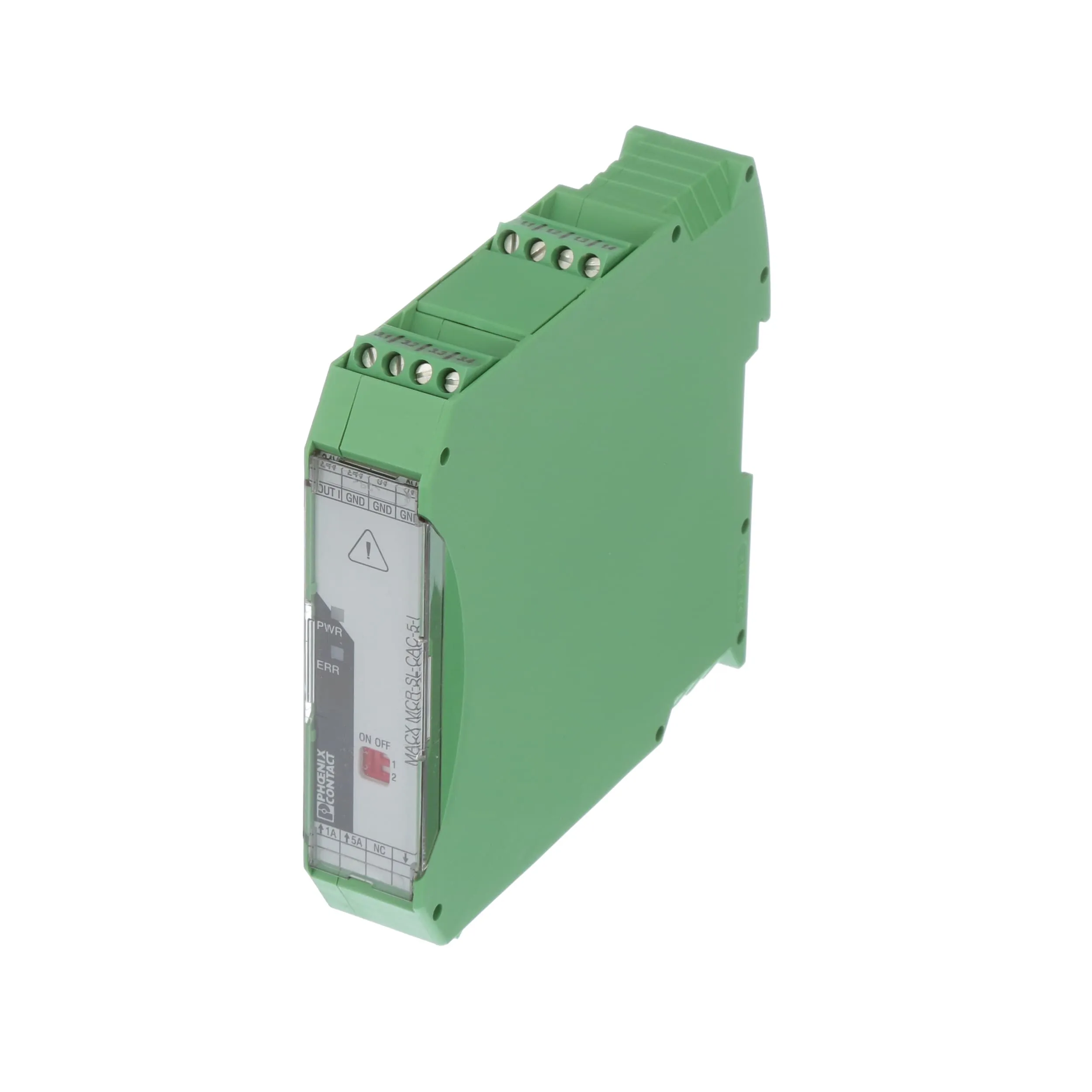

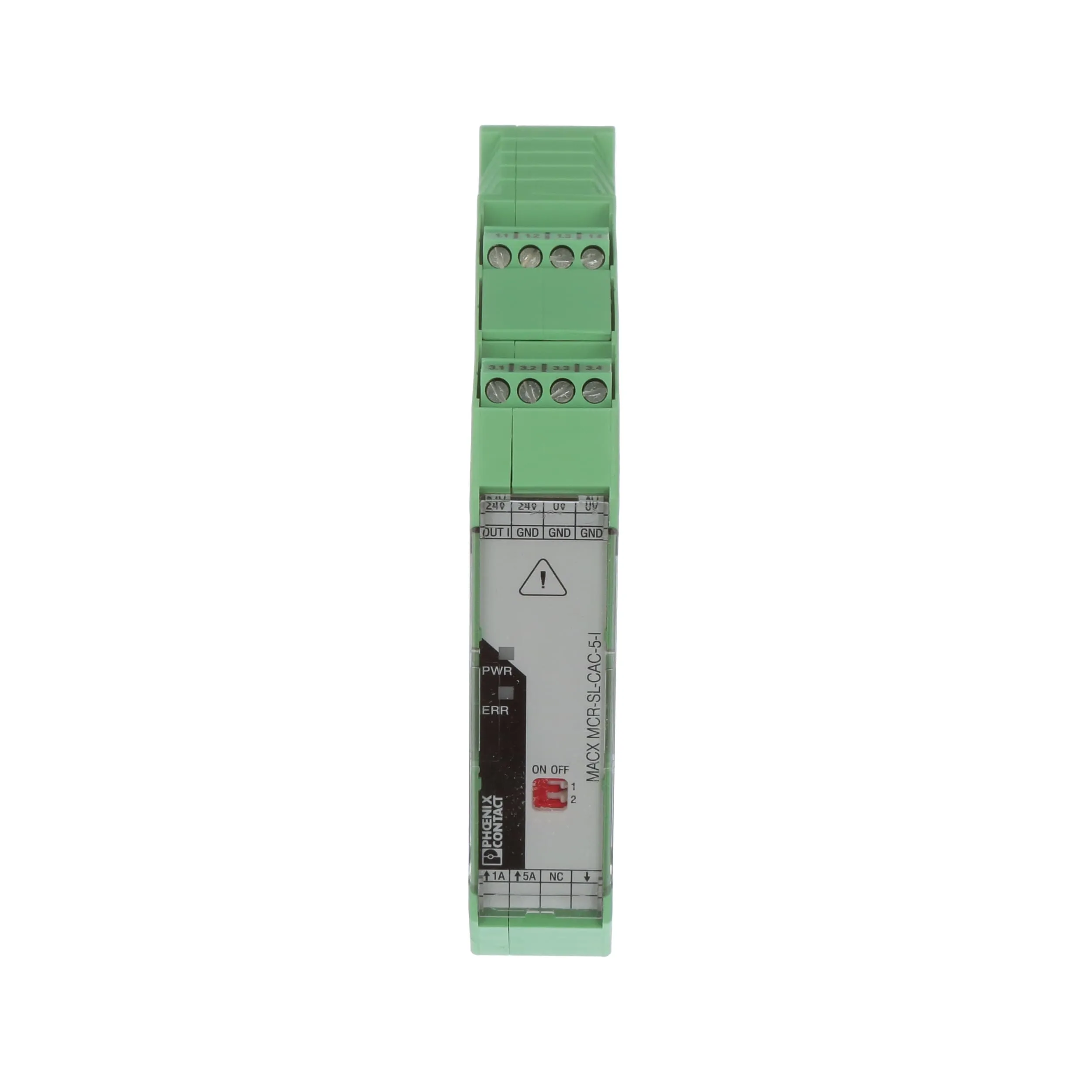

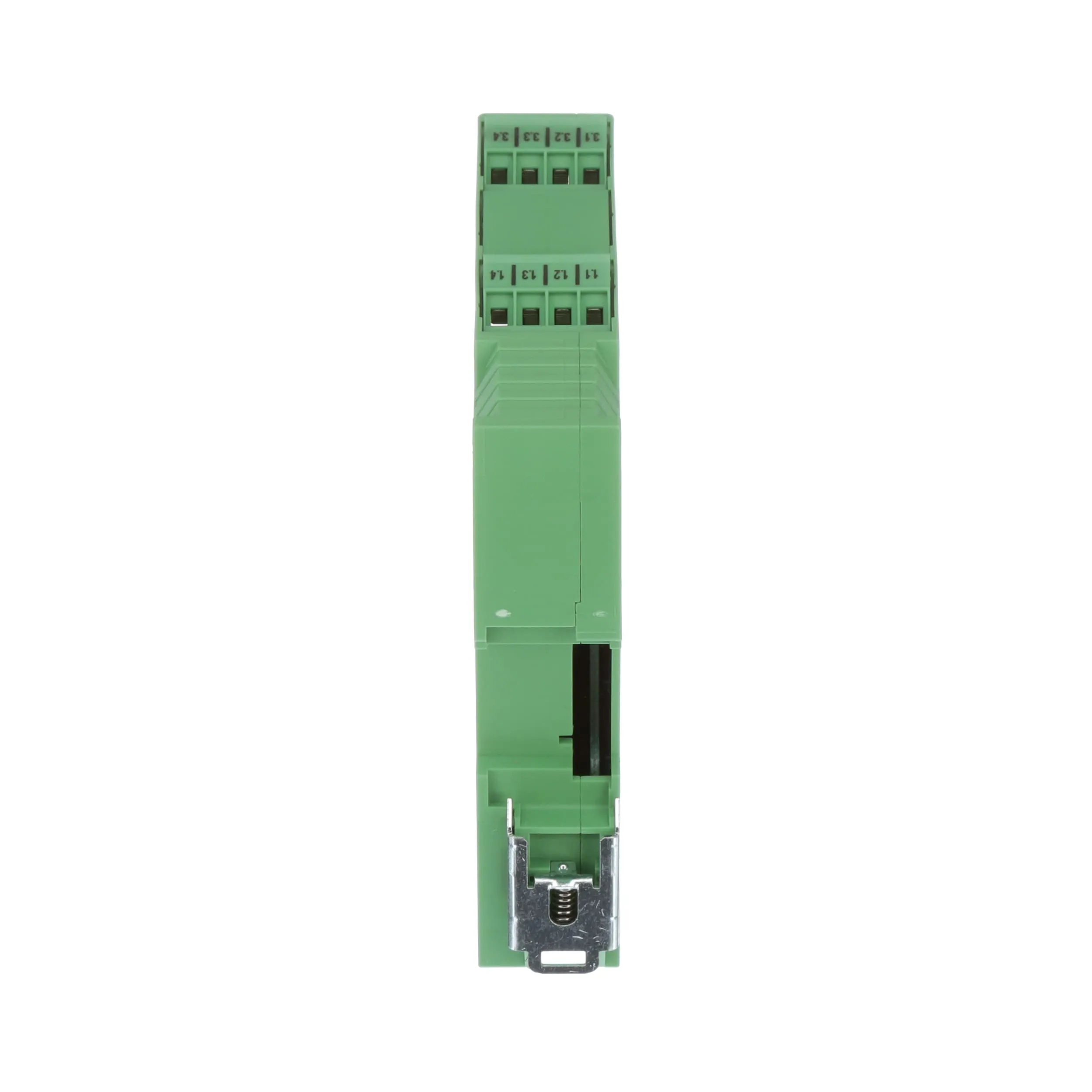

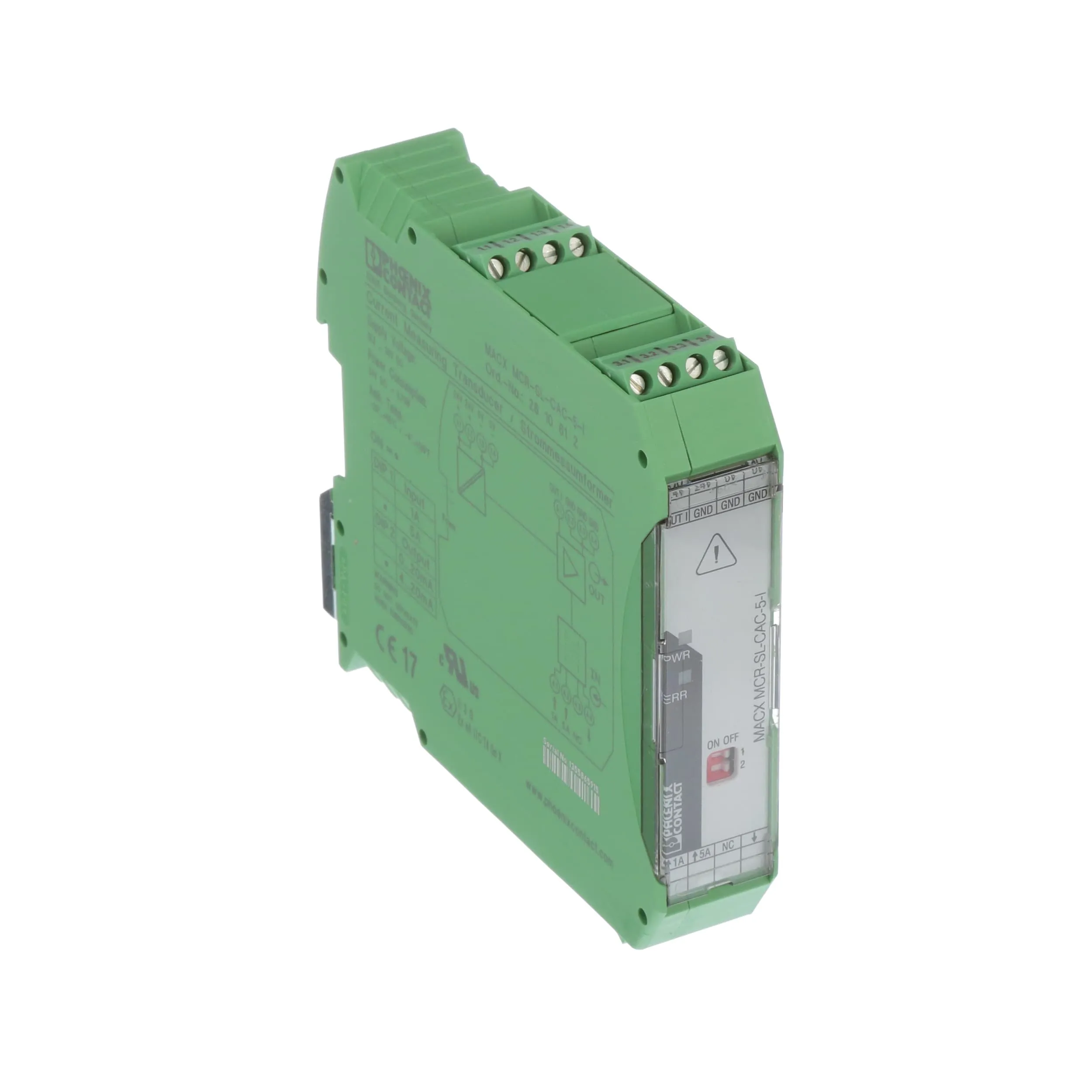

Phoenix Contact 2810612

$ 68.86

$ 52.97

Title

DefaultTitle

Please select combo product attributes

The combo subtotal is $,SAVE $

Unavailable

Quantity - +

ADD TO CART

BUY IT NOW

Product Attribute	Attribute Value
Alternate Mfr Part Number	MACX MCR-SL-CAC- 5-I
Approvals	ATEX, UL Recognized, cUL Recognized, EAC, cULus Recognized
Color	This product is transitioning from the current base color of green to gray. During the transition, the manufacturer will ship green product until depleted, followed by gray. The change is purely cosmetic in nature and does not impact the form, fit, function or technical ratings of the product.
Connection Type	Screw terminal block
Current Rating	20 mA
Depth	114.5 mm
Height	104 mm
Housing Material	Polyamide PA non-reinforced
Series
Standards	EN 61000-4-6
Termination	Screw
UPC Code	4046356153775
Width	22.5 mm

Overview

Phoenix Contact MCR Series – MINI Analog Voltage Transducers for outputting standard analog signals:

MACX MCR voltage transducers can be used to measure DC and AC voltages in various signal ranges and convert them to standard analog signals. Eight precisely graded measuring ranges guarantee optimal measuring accuracy.

Features:

Zero/span adjustment: ±20%

Screw or Push-in connection

Safe electrical isolation with 3.3 kV test voltage between input and output

Operating temperature: -25°C … 60°C

Optimal measuring accuracy, thanks to eight precisely graded voltage measuring ranges

Simple measuring range selection via zero/span or automatic teach-in configuration

High operational reliability, thanks to 3-way electrical isolation

Simple installation due to pluggable connection technology
