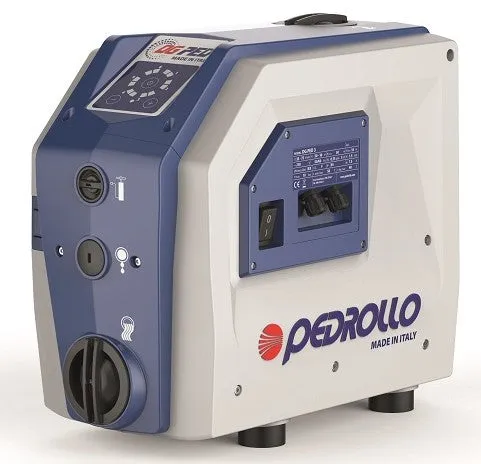

Pedrollo DG PED 3 Automatic Variable Speed Pressure Pump System 0.75KW 240V

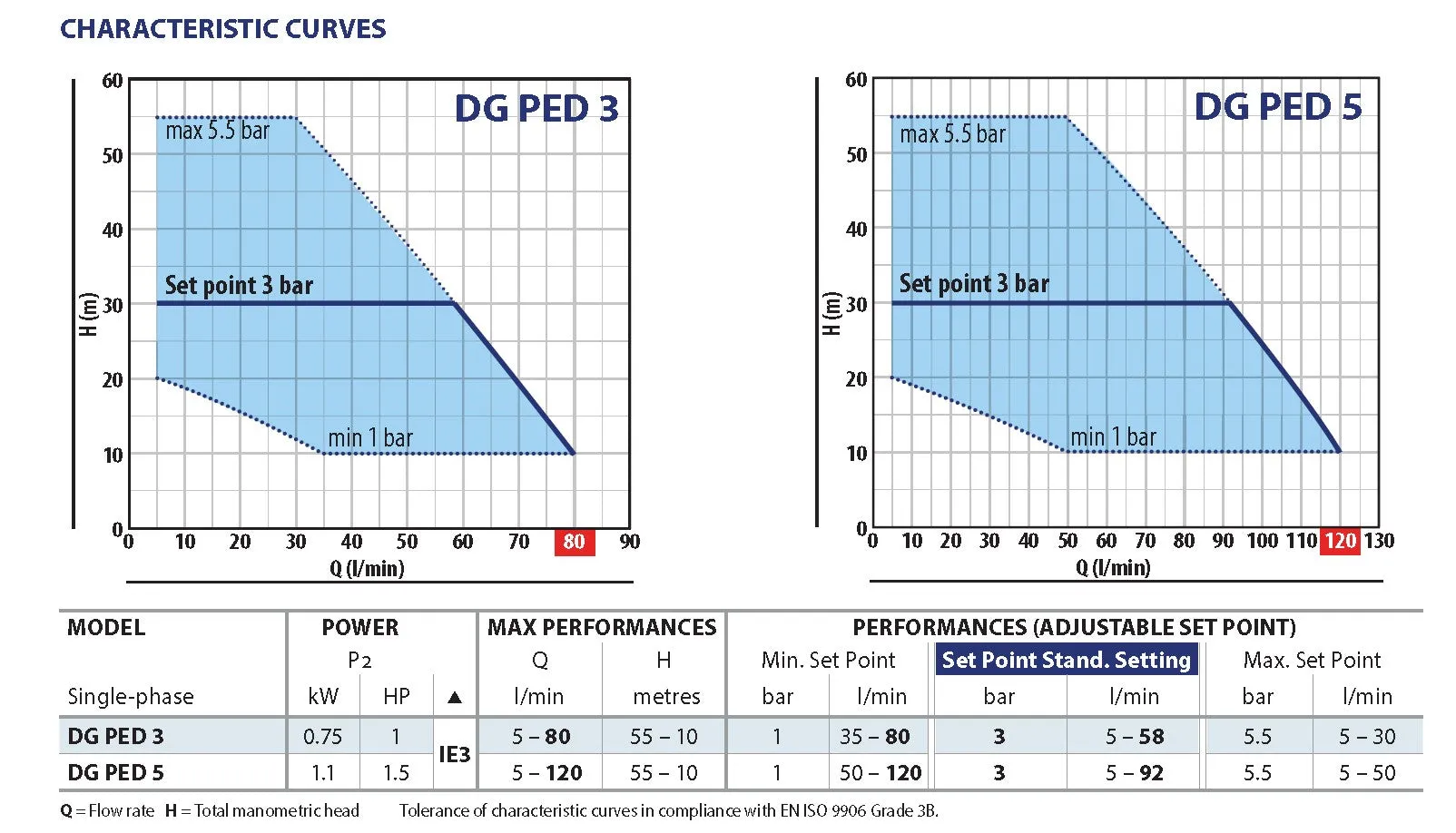

PERFORMANCE RANGE
– Flow rate up to 80L/min
– Head up to 55m

APPLICATION LIMIT
– Temperature of the liquid from -10 °C to 40 °C
– Ambient Temperature to 40 °C
– Max. suction lift 8m
– Continuous service S1

Surface Mounted - Variable Speed Pressure Pump

0.75kW,  240V, max hd 55m, max flow 80L/m,

Ports 1” BSPF In, 1” BSPM Out

The Pedrollo DG PED is a compact, high-performance automatic pressurisation system with inverter, suitable for use across domestic, residential and commercial applications. Each system includes a high-efficiency self-priming pump, an expansion vessel, pressure sensor, flow rate sensor and non-return valve.

The DG PED includes a sophisticated electronic inverter, which maintains a constant pressure through continuous variable adjustment of the speed of the pump. This also protects the pump from anomalies and limits starting and operating currents, providing a greater energy saving.

The pump is characterised by:

• Automatic pressurisation system with inverter which integrates: a high efficiency self-priming pump; an expansion vessel; pressure and flow rate sensors; a non-return valve.
• Compact, autonomous, quiet and high performance pumping system.
• A sophisticated electronically controlled inverter, at the heart of the system.
• Comes complete with plug and play leads.
• Flows to 80 l/m
• Heads to 55m

Applications

A single DG PED 3 meets the requirements of single apartments or small houses.
