"How To Install" Video In YouTube
Installation of Casa2 for Framed Door
Installation of Casa3 for Frameless Glass/Wooden Doors
CASA3 Automatic Sliidng Barn Door Opener Working Video
Olide Residential Automatic Sliding Door Operator Belt Type
Standard track length is 2.2m, suitable for single leaf 0.9m-1.1m;

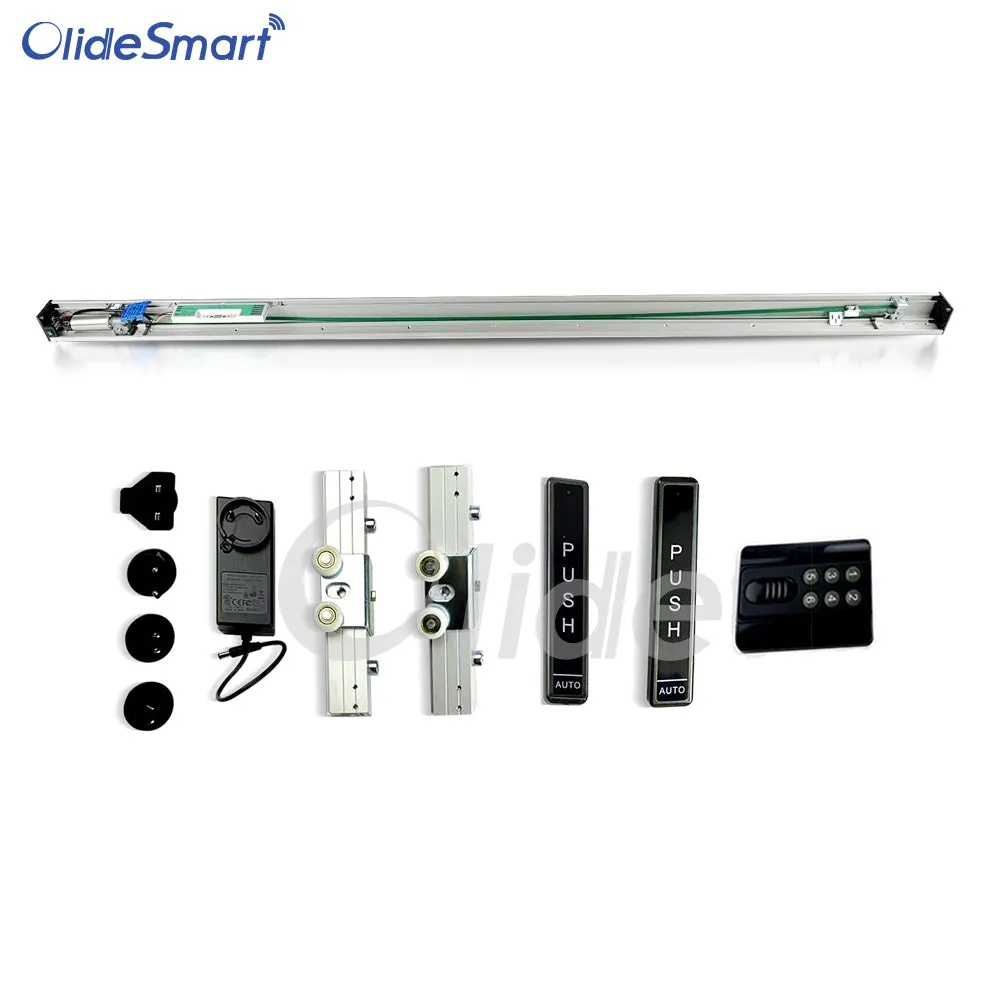

CASA2 electric door opener for framed door includes: Win-slider, adapter, install bracket, remote, one pair wireless push button and gear rack.

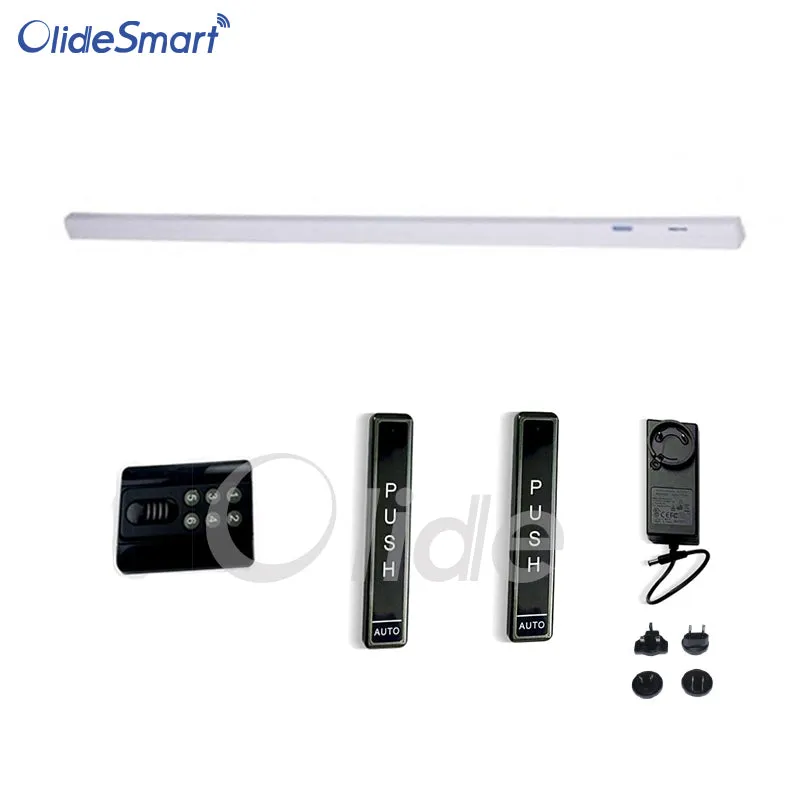

CASA3 residential sliding door operator for frameless glass/wooden door includes: Win-slider, adapter, remote control, one pair wireless push button, belt, stopper, hanger, belt connector, pulley, belt auti-drop device; (Frameless wooden door will addtional equipped wooden door connector)

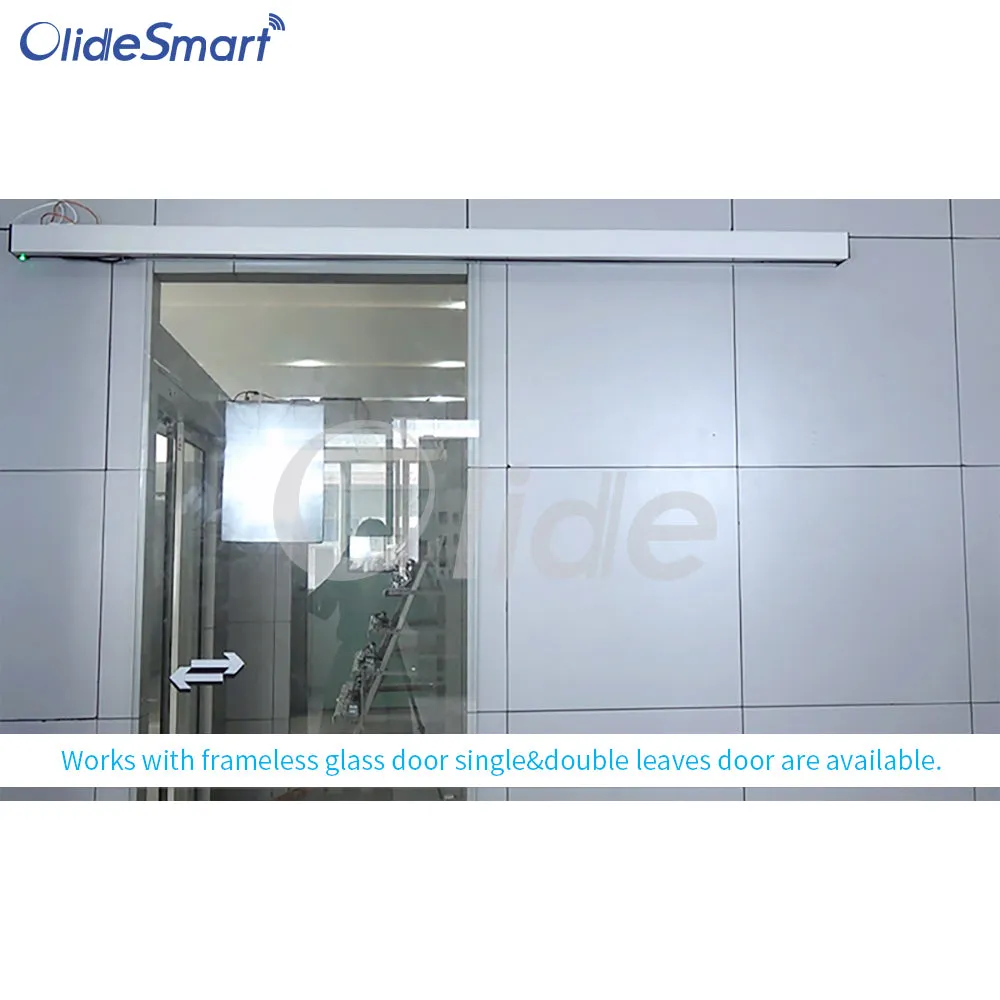

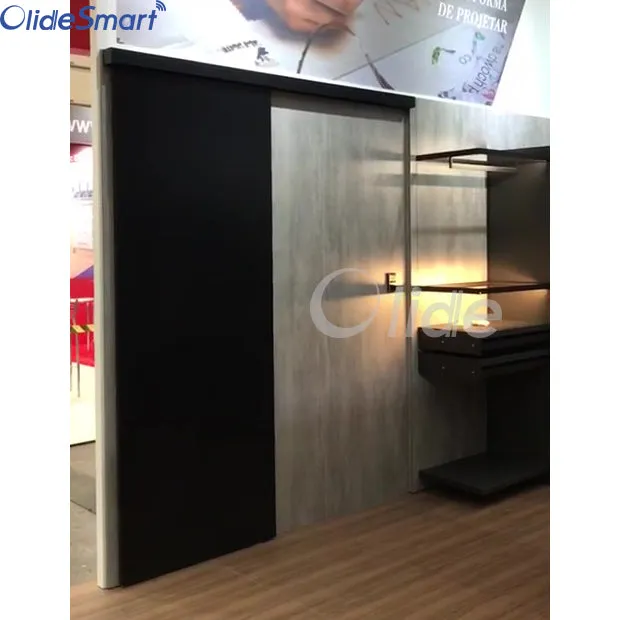

There are 2 types of door opener, please select according to the type of your door(framed or frameless). Casa2 is for framed doors, such as framed wooden door, framed glass door; Casa3 is for frameless glass doors and frameless wooden doors(barn door). You can note door type when you placing order.
Olide Residential Automatic Sliding Door Operator Belt Type Features
- Easy for installing,without change existing door strcture.
- Compact size,nice appearance and modern design.
- System can apply with sensor,remote control,push button,pet switch,photocell,card reader,magnetic lock and so on.
- Window and door mode can be switched arbitrarily.
- 433.92hz module can be suit for smart home.

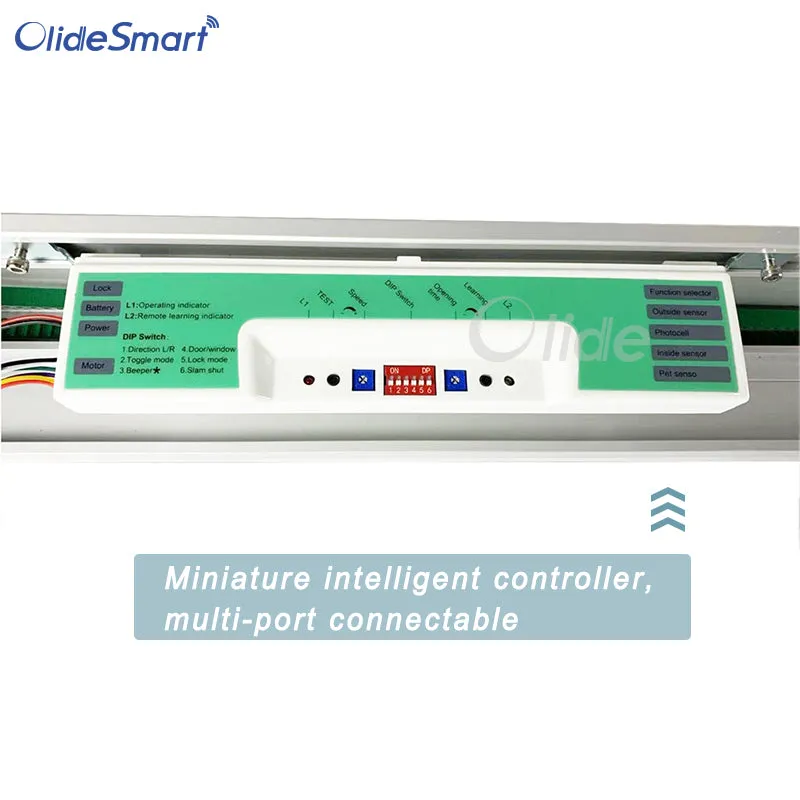

-Microcomputer Controller
Use most advanced technology to meet your needs, there are 6 dip switches and 5 modes for different functions.
-Efficient Motor
Adopt brushless DC 24V electric motor, long life and high efficiency.
-Hanging Wheel
The hanging wheels are made of aluminium material, longer life and more stronger.
-Wireless Push Buttons
One mounted inside and one outside, you can just push it for opening the door automaticlly.
Technical Specifications
Single leaf door weight: 1*60kg
Door width: max 47.2inch(1.2m)
Opening speed: 100-400mm/s(adjustable)
Closing speed: 120-220mm/s(adjustable)
Motor: 24V 40W3000rpm
Keep opening time: 0-20s
Power supply: AC100V-220V 50-60Hz
Working temperature: -10°C~70°C
Color: silver
Product measurement: 2200mm*72mm*63mm
