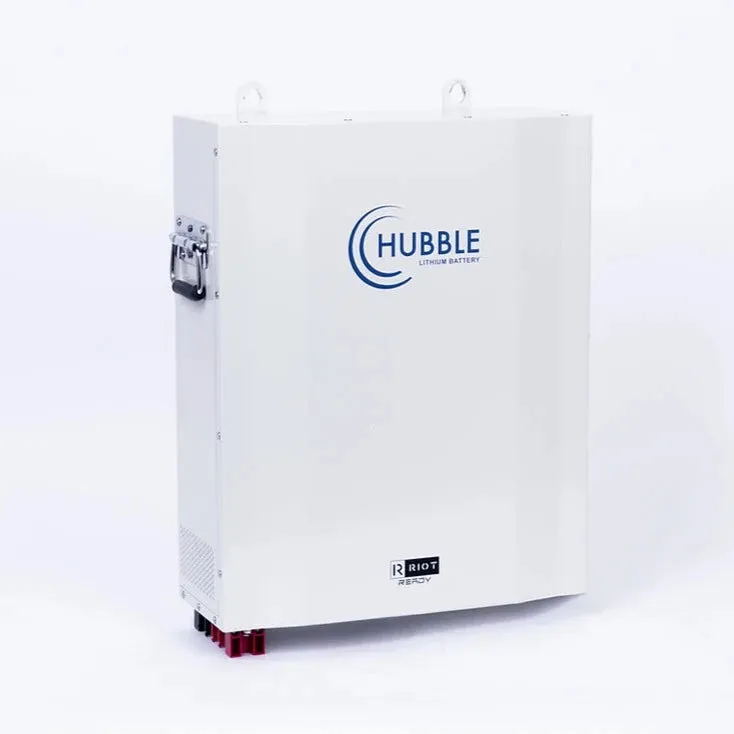

HUB-AM2-5500, The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall mounted or shelf installed in a standard rack.​ Low self discharge High cycle and service life Easy wall mount or shelf rack installation Excellent high temperature performance Advanced BMS with current limiting function Compatible with most inverters and chargers High energy density and conversion efficiency Cloudlink integration ready for wifi monitoring Complete with integrated Battery Management System Heavy duty side handles for easy handling and mounting on the wall Built in protection for over-charge, over-discharge & over-temperature CAN Bus, fully integrates and communicates with leading Inverter brands Rated Capacity (5HR): 116Ah Nominal Voltage: 48V Design Capacity: 5.5kWh Equalised Charge Voltage: 53.8V Max. Continuous Charging Current: 105A Max. Continuous Discharging Current: 105A C Rating: 1.0C Weight: Approx. 42kg Display: None Parallel: Parallel connection up to 15 packs with full communications Dimensions (WxDxH): 375mm x 145mm x 467mm Ports: 1 x CAN-bus, 2 x Battery Link Ports Cells: New Li-ion Prismatic Cells Design Life: ± 15 years Cycle Life @ 1C: /- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015 Outer Package Material: White Bake Lacquer Steel Case Operating Temperature Charging: 0°C to 55°C Discharging: -20°C to 55°C Storage: -20°C to 55°C Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
