Product Details
＋

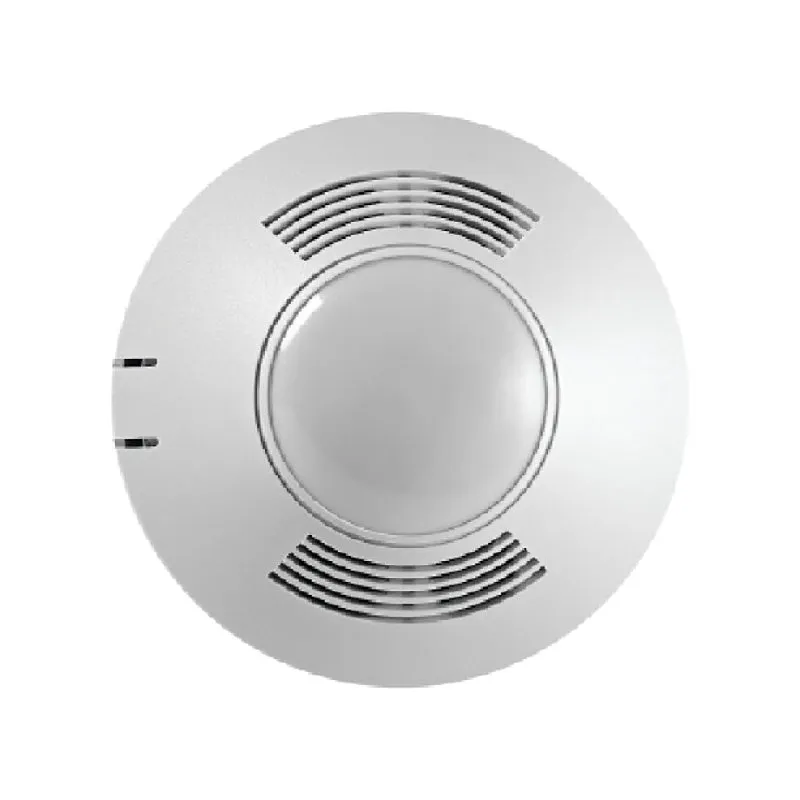

The Dual Technology sensor’s combination of Ultrasonic and Passive Infrared technologies offers the most complete sensing equipment available today. MicroSet self- adjusting Dual Technology sensors drastically simplify and reduce a contractor’s installation and adjustment time period.
Features
- Color: White
- Technology: Passive Infrared (PIR) and Ultrasonic (US)
- Voltage: 10-30 VDC from Greengate Switchpack or Greengate system
- Coverage: 500 sq. ft.
- Field of View: One Way (180°)
- Housing: Durable, injection molded housing
- Mounting: Mounts directly to ceiling tile, to a 4” square box and round mud ring or to 4” octagon box
- MicroSet self-adjusting Time Delay and sensitivity
- Built-in light level sensor
- Units available for control of single or two separate loads
- Selectable Walk-Through Mode
- Dual Relay control
- Includes BAS Relay & Daylight Sensor
