Product Details
＋

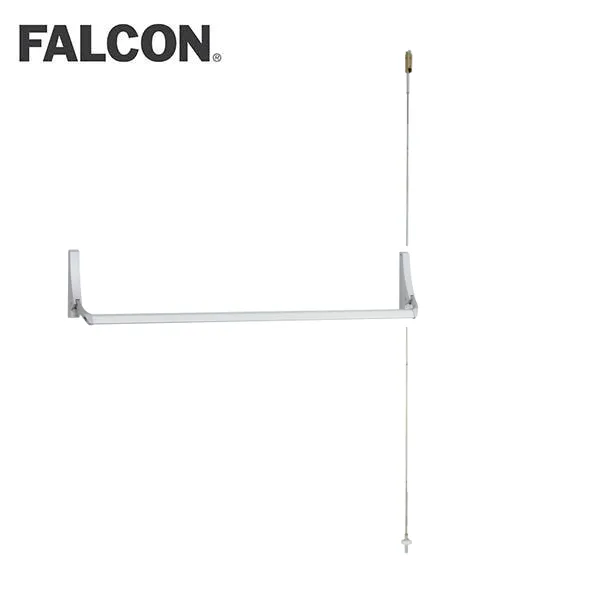

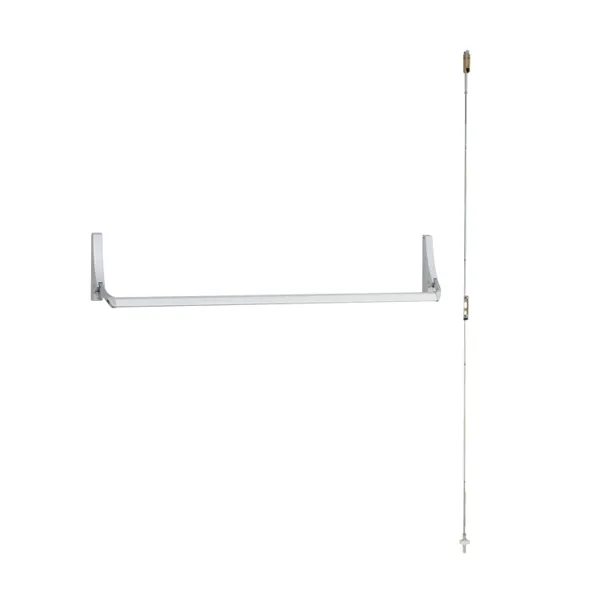

The 1990 Series narrow stile cross bar exit device provides safe and reliable egress that is ideal for aluminum doors. The 1990 Series concealed vertical rod is designed for double door applications and is certified to ANSI/BHMA A156.3 Grade 1 standards. It also includes a 10-year limited warranty.
More Information Below:
| Handing | Field reversible, non-handed |
| Functions | Cylinder only, Night Latch Function |
| Finish | P28 689 Satin Aluminum |
| Strikes | PB48 top |
| Latches | Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). The device needs to be fewer bottom rod (LBR) |
| Dogging feature | Hex dogging standard |
| Cylinder | Rim, key entry (NL) or hold back (HB) available (field selectable) |
| Sizes | Field adjustable width, 44" crossbar Doors: 1 3⁄4" thick metal doors |
| Projections | 4 3⁄8" extended, 2 1⁄2" depressed |
| Doors | 1 3⁄4" thick metal doors |
| Stile | 1 3⁄4" minimum |
| Fasteners | All mounting screws are concealed |
| ANSI | Certified ANSI A156.3 grade 1 standards |
| UL | UL305 listed |
| Vertical rods | 7' standard, extension rod kits available up to 10' |
Downloads:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
