Key Features

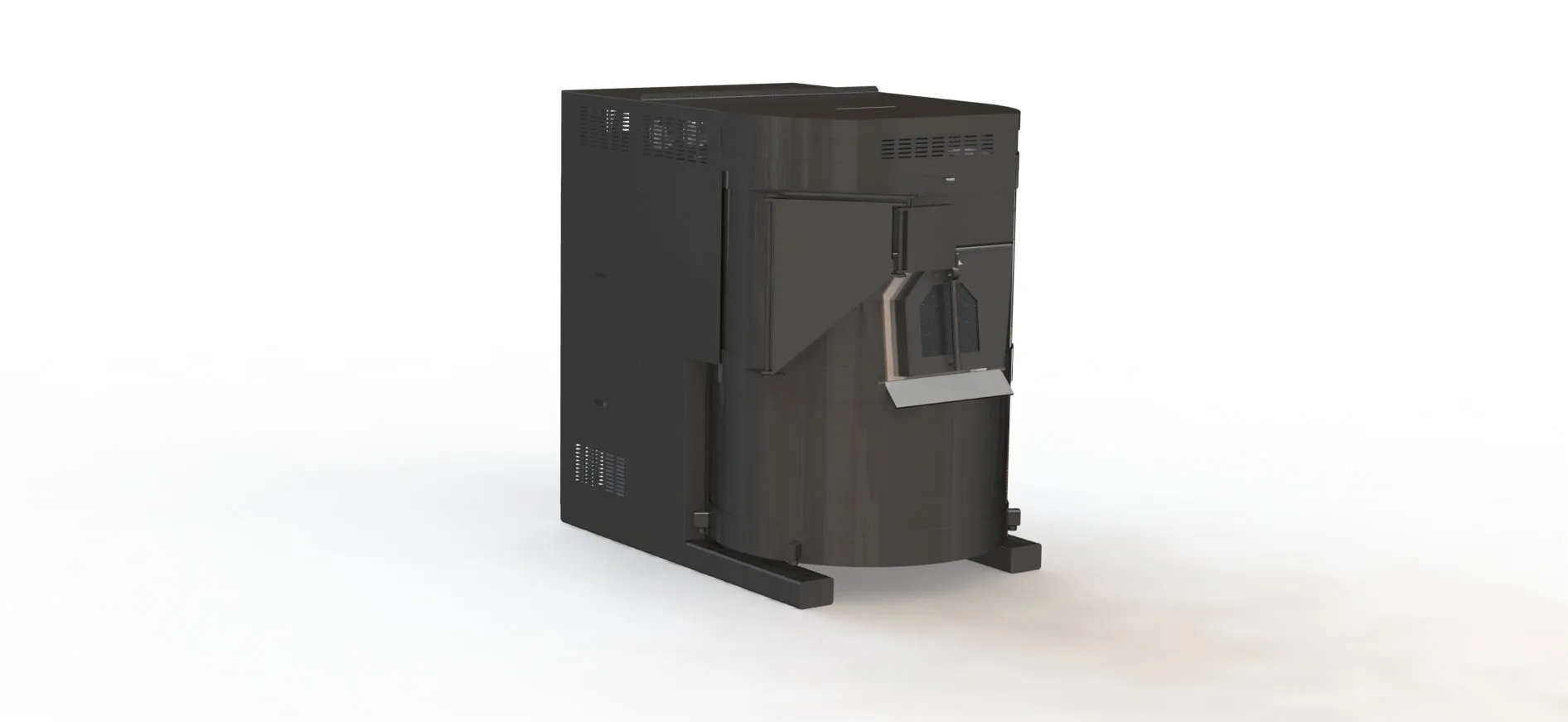

400 lb capacity soda lime glass melting furnace
Sintered round AZS tank liner with our microporous insulation for maximum efficiency
Roller-less easy opening door system
Suspended crown for easy liner change

Dimensions

Footprint approximately 48" wide x 68" deep. Max overall height 72”
Door opening 11”wide x 12” tall
Approximate weight – full of glass 5,400 lbs

Power Requirements

Three phase 480vac/208vac
36 FLA (480vac)/ 84 FLA (208vac)
Maximum 30KW
Idles at 8KW/hr. on average

Controls

Watlow EZ Zone ramp/ soak and hi limit controller
Elements are six Kanthol elements supplied with bus bar power distribution and active element cooling system.
Two Type R thermocouples
Power panel ETL listed and integrated into the furnace but can be remotely mounted
Indicator lights for (Power on), (Limits Complete), (High Limit Exceeded)

Pricing and Options

Base Price $60,400
Watlow F4 with touch screen control   $1550
Watlow F4 with touch screen control and trending charts $1750
A/C Unit for cooling panel  $2900
Stainless charging shovel   $375
Backup door  $450

Shipping and Crating

This Item Does Not Qualify For Free Shipping

Please Contact Us For Shipping Options and Costs.

This furnace will be assembled and mounted in a large wooden shipping crate unless local pick up is arranged in advance.
Shipping costs vary depending on location, packaging, and insurance.

All shipping is FOB Seattle - See our !
