| Product Attribute | Attribute Value |
|---|---|
| Communication Port Type | USB ; Ethernet ; Modbus |
| Controller Type | Logic |
| Current, Supply | 0 to 20 mA |
| Depth | 0.079" (2mm) |
| Dimensions | 107.6 x 124.6 x 68 mm |
| Family Name | Millenium 3 Smart Compact Family |
| For Use With | Millenium 3 Custom Controllers ; Millenium 3 Standard Controllers |
| Input Type | Digital |
| IP Rating | IP40 |
| Length | 4.236" (107.6mm) |
| Maximum Operating Temperature | 70 C |
| Memory | EEPROM |
| Minimum Operating Temperature | -20 C |
| Mounting Type | DIN Rail ; Panel |
| Number of I/O Ports | 20 |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Output Current | 8 A |
| Output Type | Relay |
| Primary Type | Controller |

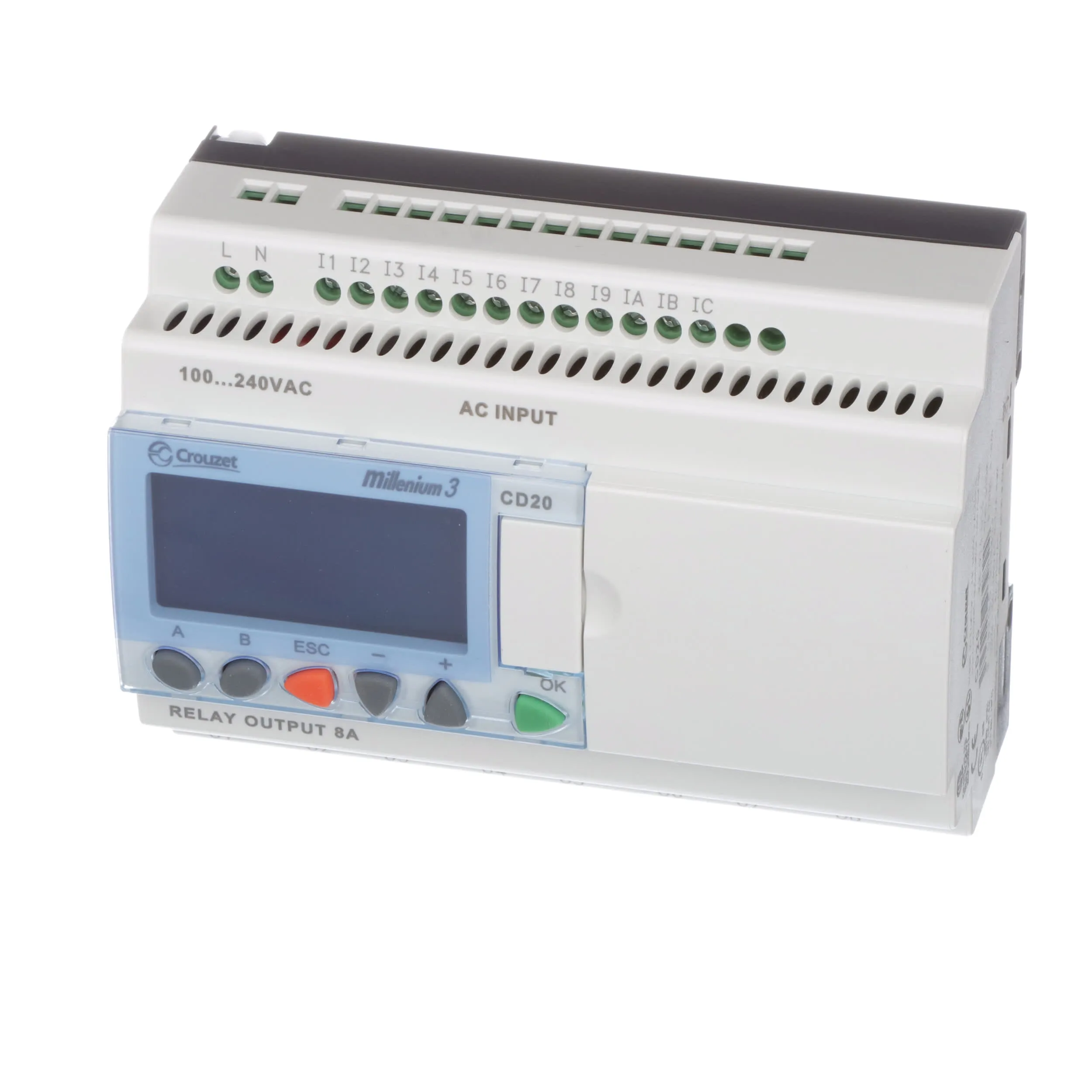

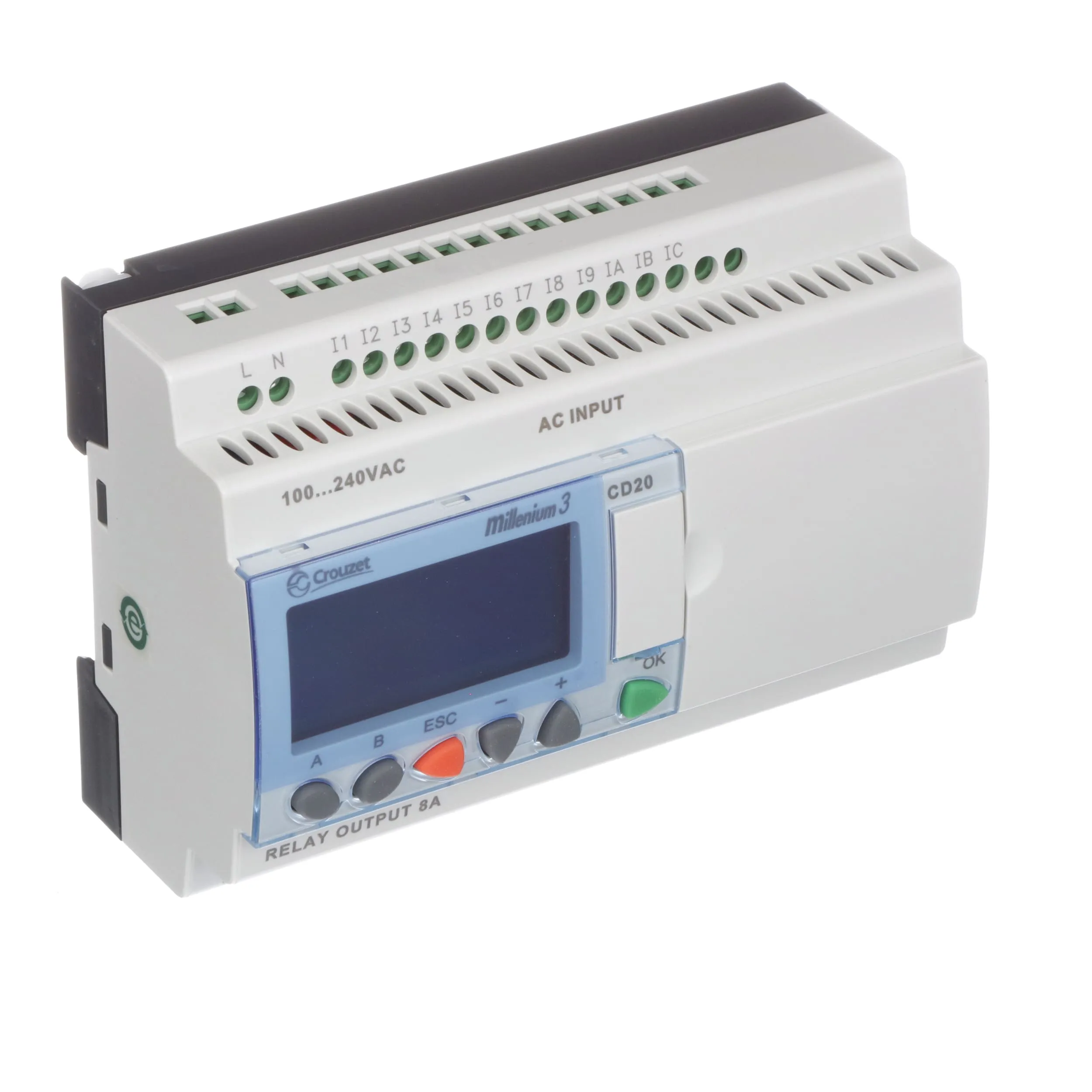

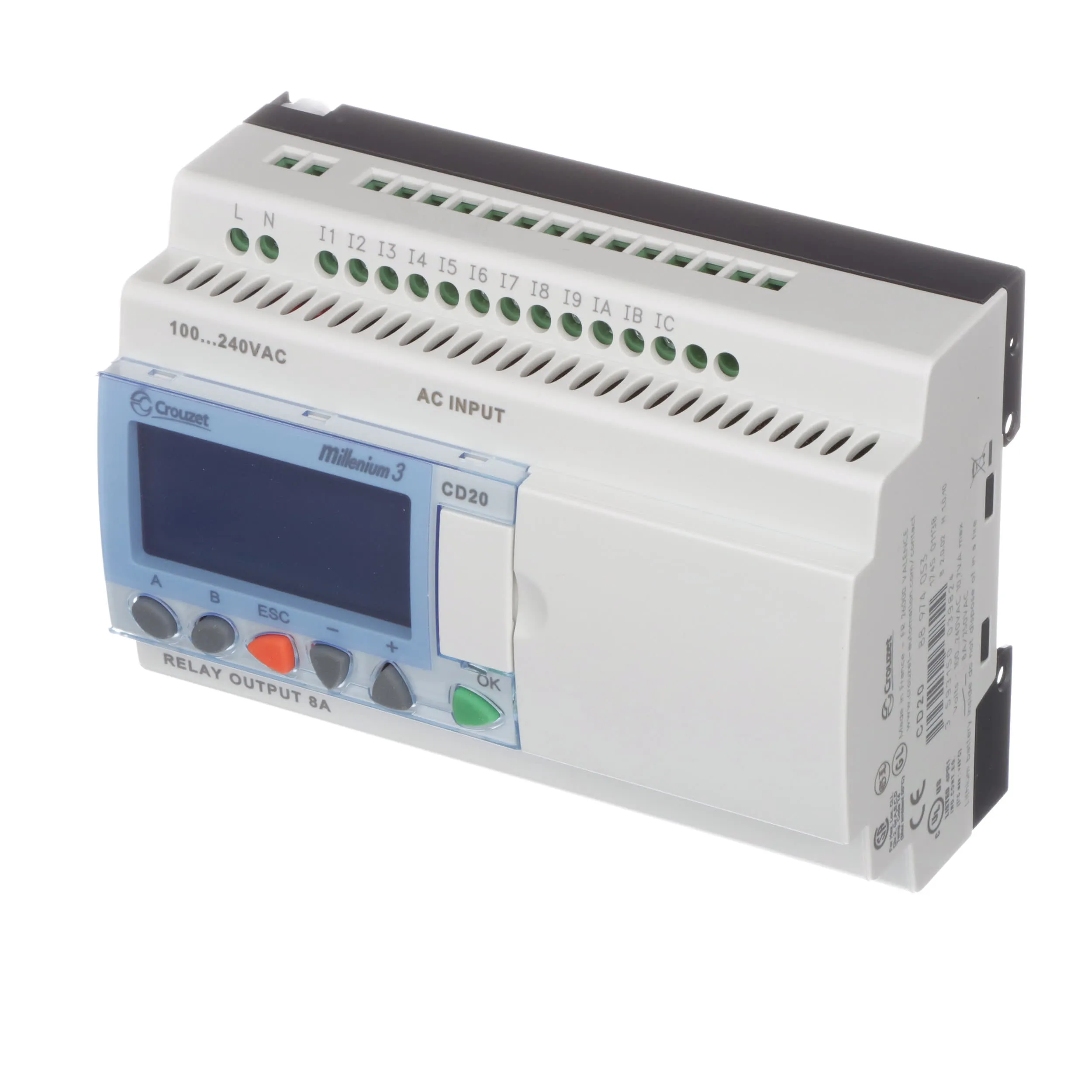

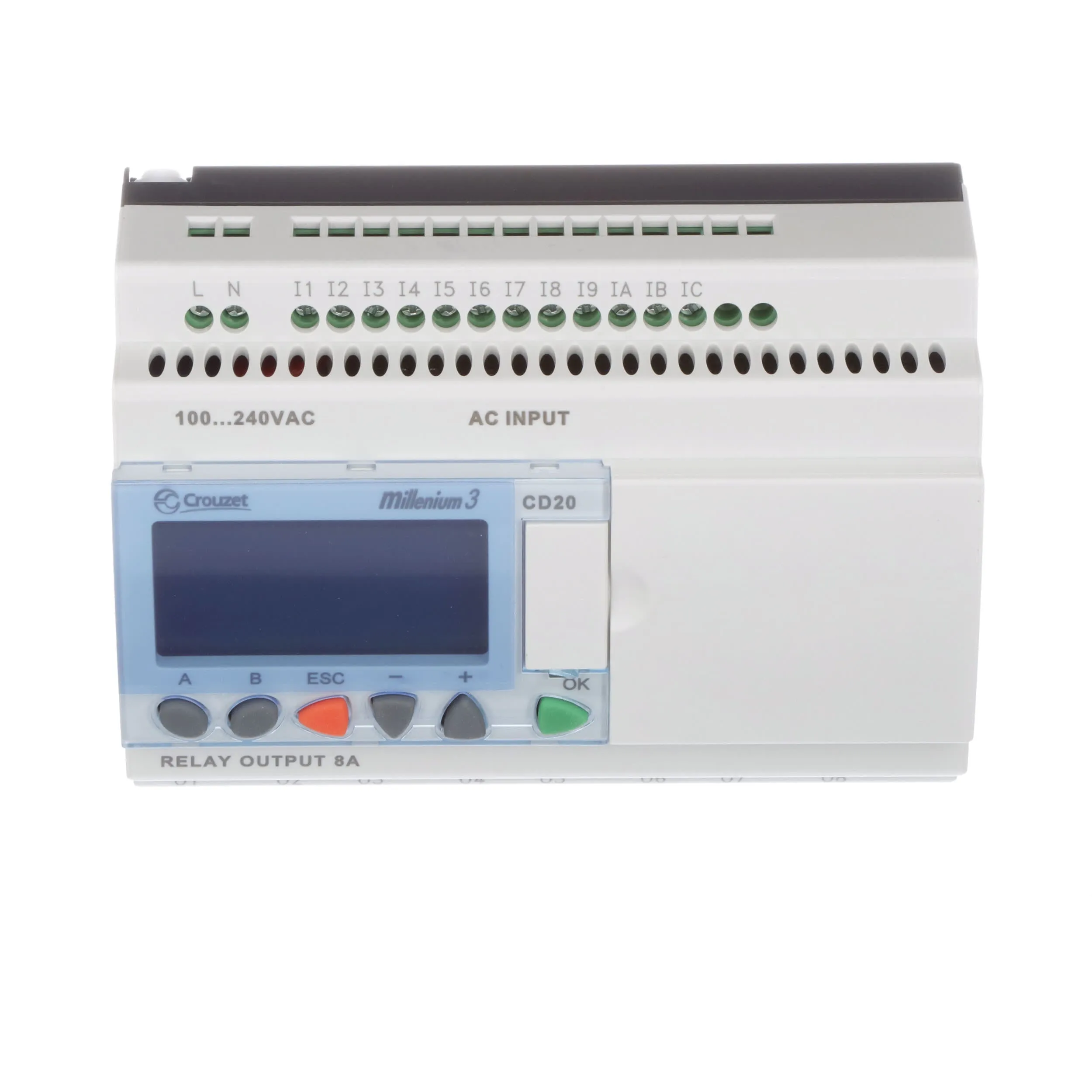

| Product Header | CD20 Millenium 3 Compact Range Logic Controller |
| Scan Rate | 10 (Make) Off-Cycle Response, 255 (Functional Block) Response Time, 5 (Release) Off-Cycle Response, 50 (Ladder) Response Time ms |
| Series | |
| Special Features | 70degC Operating Temperature, Backlit Blue LCD Display, Compact Version, Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit |
| Standards | CE ; CSA ; GL ; UL |
| Supply Voltage | 100-240 VAC |
| Temperature Operating Range | -20 to 70 C |
| Termination | Screw |
| Type | PLC |
| Voltage Rating | 100-240 VAC |
| Width | 4.906" (124.6mm) |
Overview
Crouzet Millenium 3 Smart Compact Family | CD12 / CD20 Series — Easiest Logic Controller With Display:
The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os. Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Smart Compact Range With Display Features:
