| Product Attribute | Attribute Value |
|---|---|
| Application | Communication |
| Family Name | Millenium 3 Family |
| For Use With | Micro Controllers ; M3 Controllers ; M3Smart Expandable Controllers |
| Input Type | Digital |
| Mounting Type | DIN Rail Mount |
| Number of Inputs | 8 Input |
| Number of Outputs | 6 Output |
| Output Type | Relay |
| Primary Type | Expansion |
| Series | |
| Special Features | Digital Termination Extension for XD10 ; XB26 ; XD26 ; XDB10 |
| Standards | UL Listed, CSA Certified, EC, ISO 9001, ISO 14001, OHSAS 18001 |
| Supply Voltage | 24 VDC |
| Type | I/O |
Overview
Crouzet Millenium 3 Family | XR06 / XR10 / XR14 Series — Smart and Essential Terminal Extentions:
The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os. Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
XR06:
4 digital 2 relays 8 A Via the 24 V c controller 88970211
4 digital 2 relays 8 A Via the 100 to240 V a controller 88970213
4 digital 2 relays 8 A Via the 24 V a controller 88970214
4 digital 2 relays 8 A Via the 12 V c controller 88970215
XR10:
6 digital 4 relays 8 A Via the 24 V c controller 88970221
6 digital 4 relays 8 A Via the 100 to240 V a controller 88970223
6 digital 4 relays 8 A Via the 24 V a controller 88970224
6 digital 4 relays 8 A Via the 12 V c controller 88970225

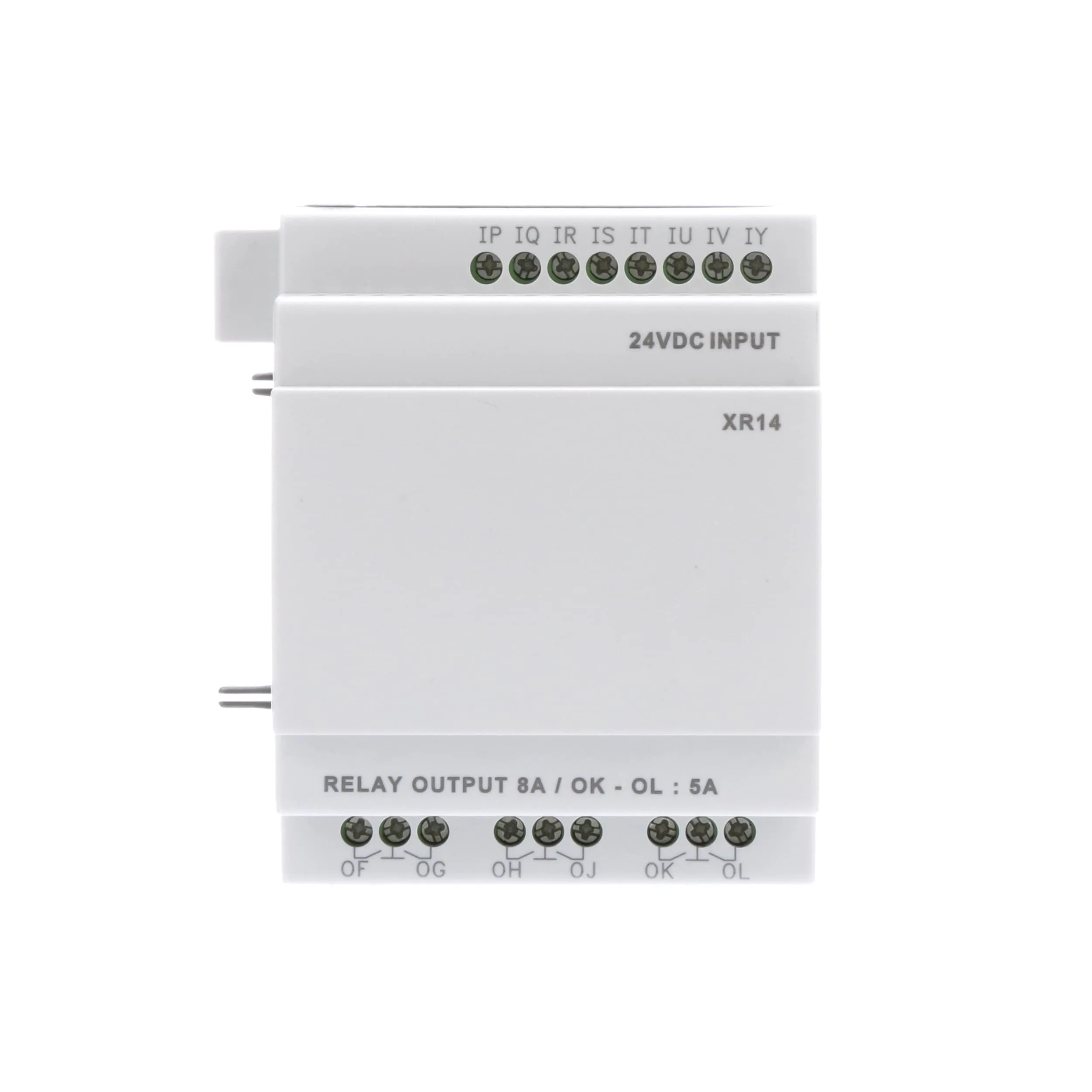

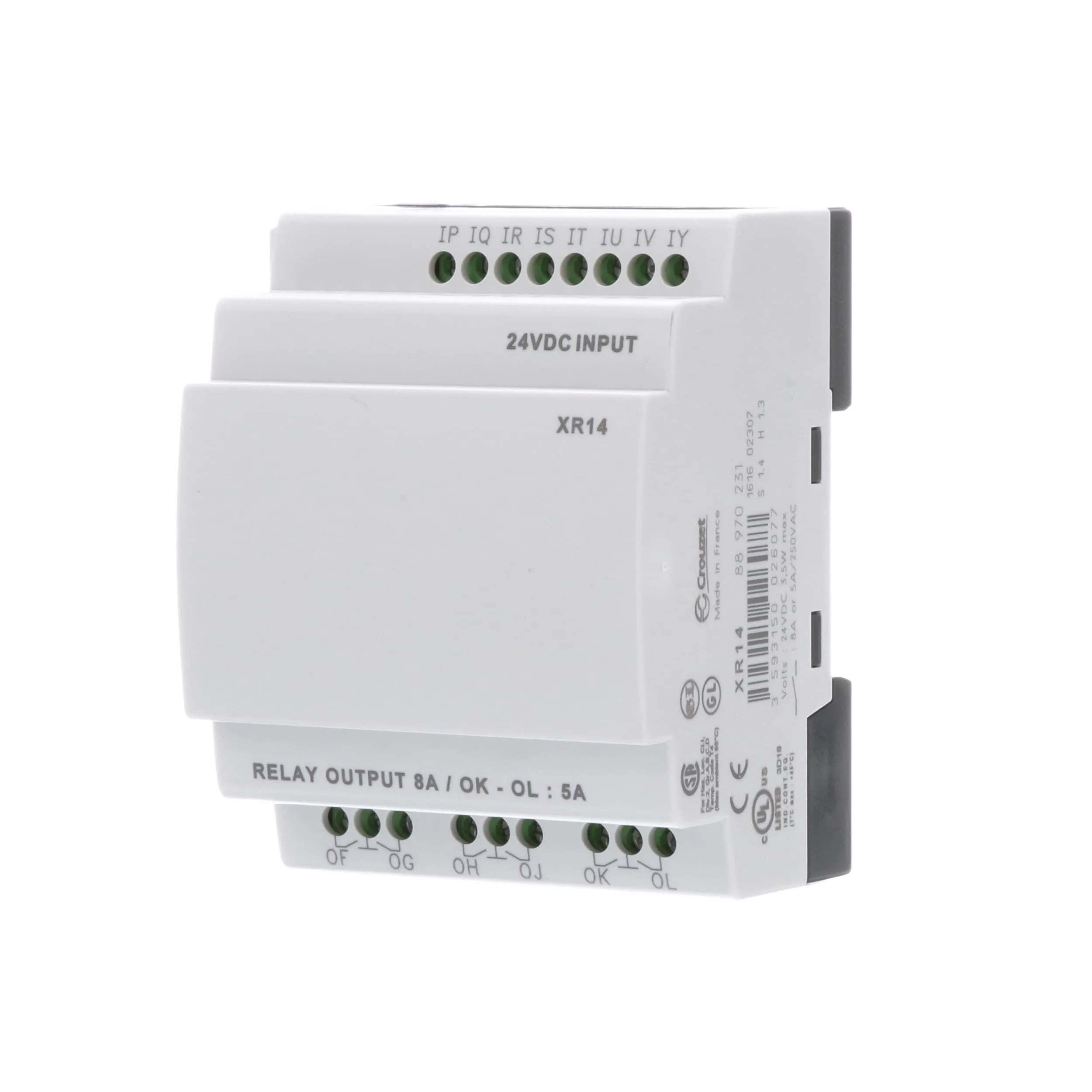

XR14:
8 digital 6 relays (4 x 8 A relay and 2 x 5 A relay) Via the 24 V c controller 88970231
8 digital 6 relays (4 x 8 A relay and 2 x 5 A relay) Via the 100 to240 V a controller 88970233
8 digital 6 relays (4 x 8 A relay and 2 x 5 A relay) Via the 24 V a controller 88970234
8 digital 6 relays (4 x 8 A relay and 2 x 5 A relay) Via the 12 V c controller 88970235
