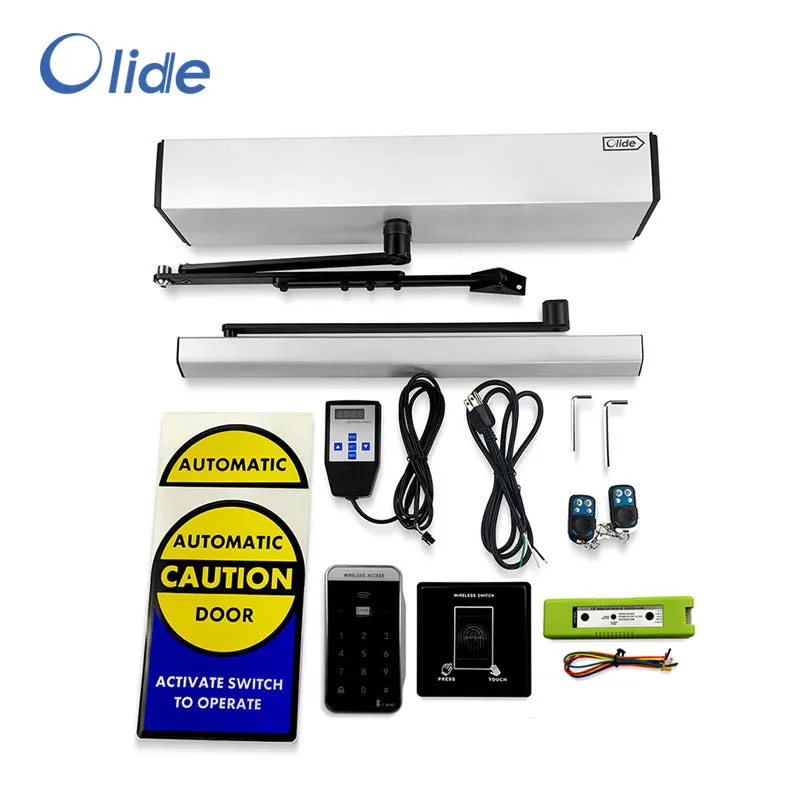

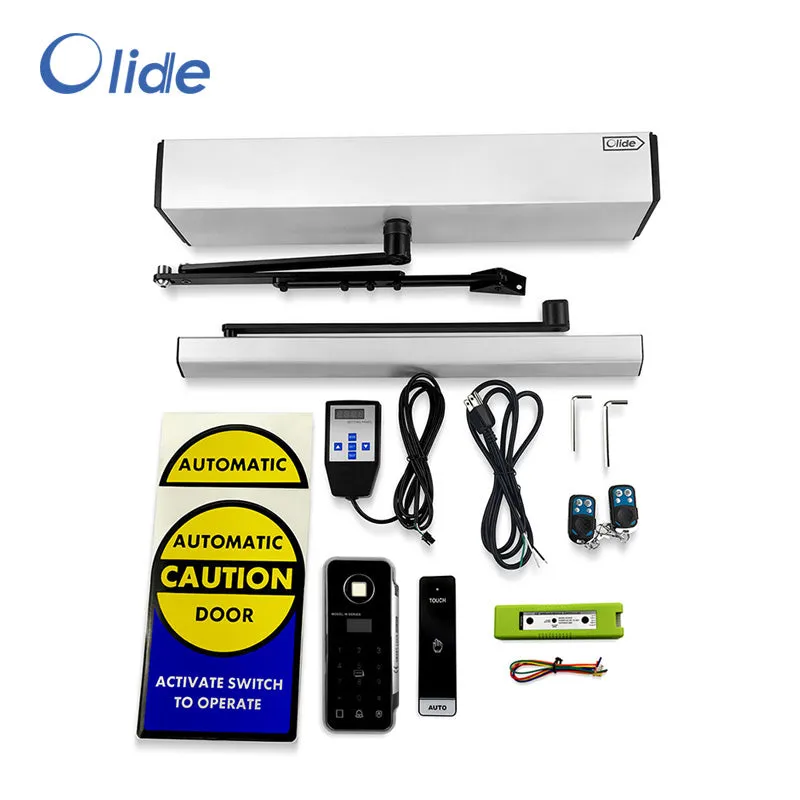

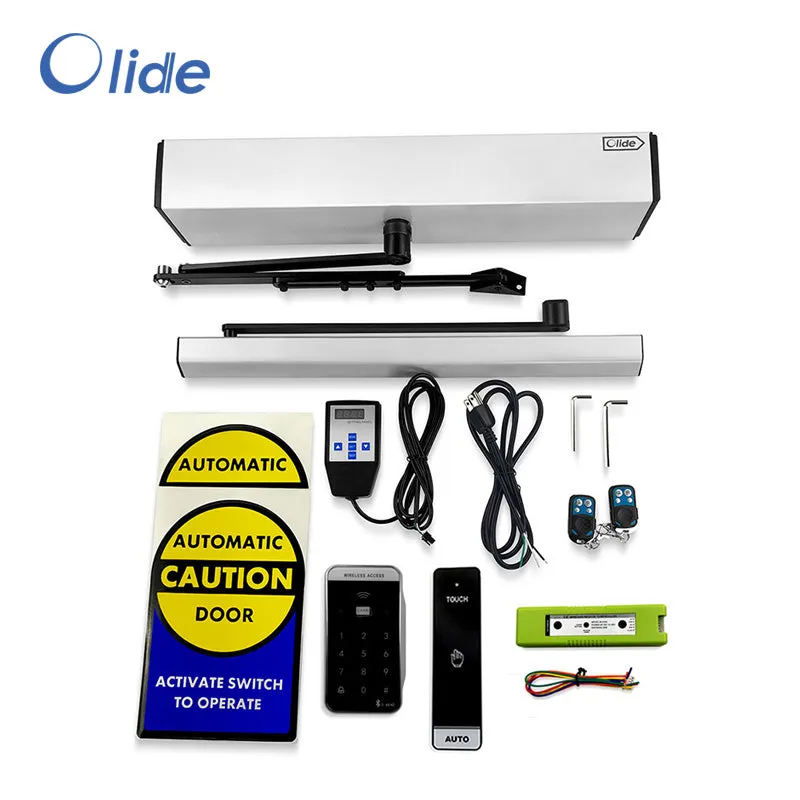

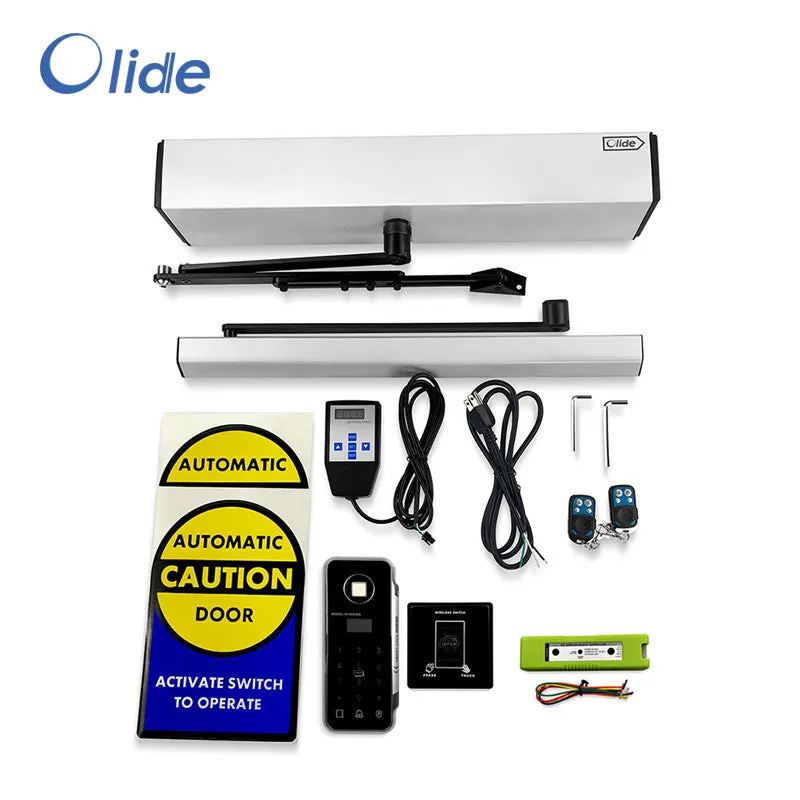

Olide Wireless Fingerprint Door Lock Automatic Swing Door Opener

Name: Automatic Door Opener With Wireless Fingerprint Door Lock/Hand Touch Switch, Manufacturer
SKU: 799091

Multi-Swing has been engineered to open doors for people with disabilities, the elderly and children.Our unique one-way clutch mechanism allows the door to be opened manually with incredible ease.

Wireless Fingerprint door lock and card reader make enter the door more convenient and safe.Also meet the needs of specific office personnel to enter and exit the room.

Wireless smart fingerprint lock make access control easy

PUSH&GO FUNCTION：Manually push force can be adjusted

Automatically re-open door if it notices an object in the closing path

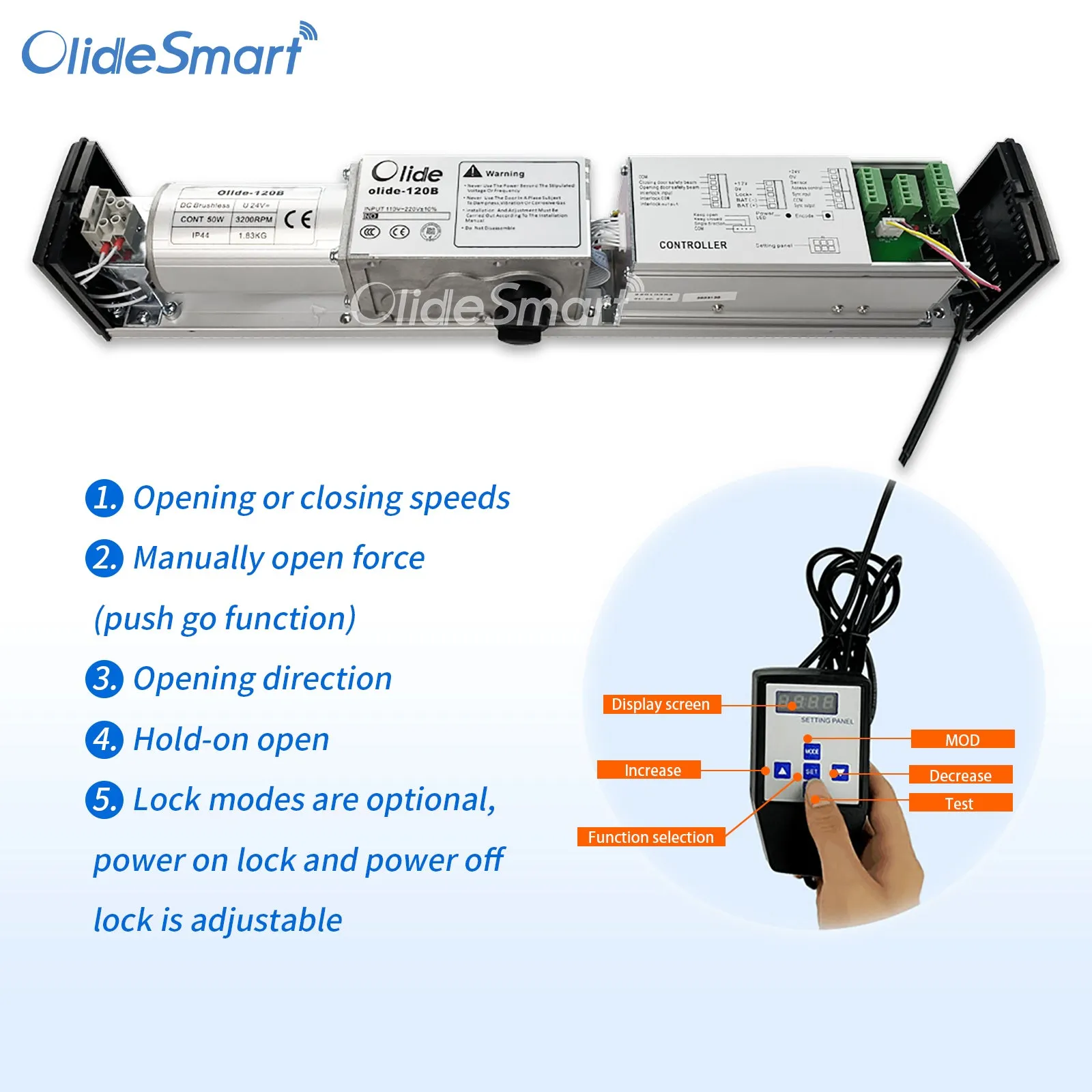

Easily set all of parameters by hand programmer

Installation Video makes install easier

There are two arms to choose from.

272 Wirelesss Access Card Reader Technical Specifications

270 Fingerprint Access Keypad

Wireless Hand Push/Touch Switch Automatic Door Opener Technical Specifications

Model:	Olide-120b	Swing application:	one-way open, single leaf and double leaf standard doors

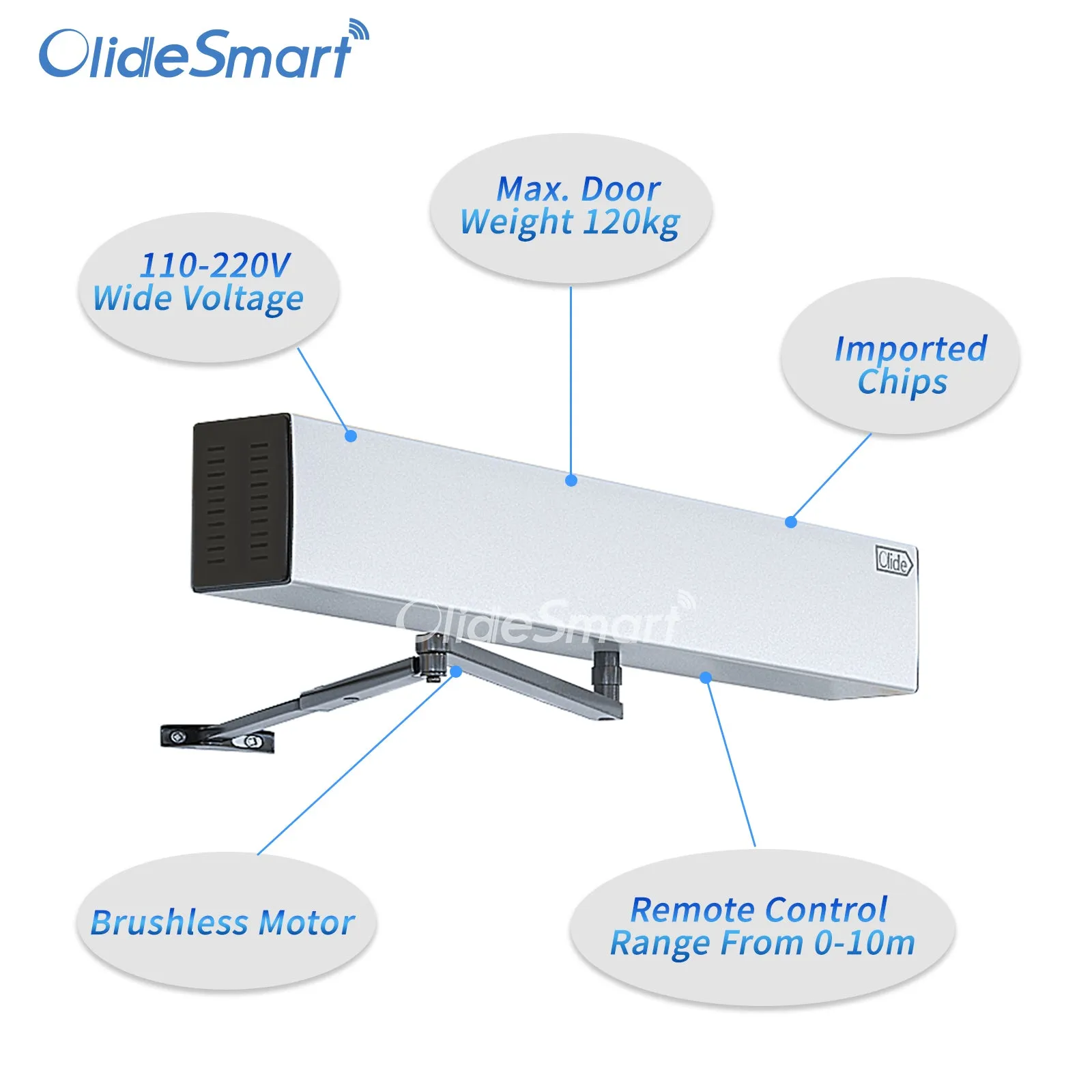

Power supply:	100V-240V AC, 50/60Hz	Motor:	DC 24V brushless motor
Rated power:	50W	Door weight:	120kg/264lbs
Door width:	Min. 660mm/26"; Max. 1200mm/47.2''	Opening/closing speed:	3~8s (adjustable)
Opening time:	0~120s (adjustable)	Hold-open time:	1~30s (adjustable)

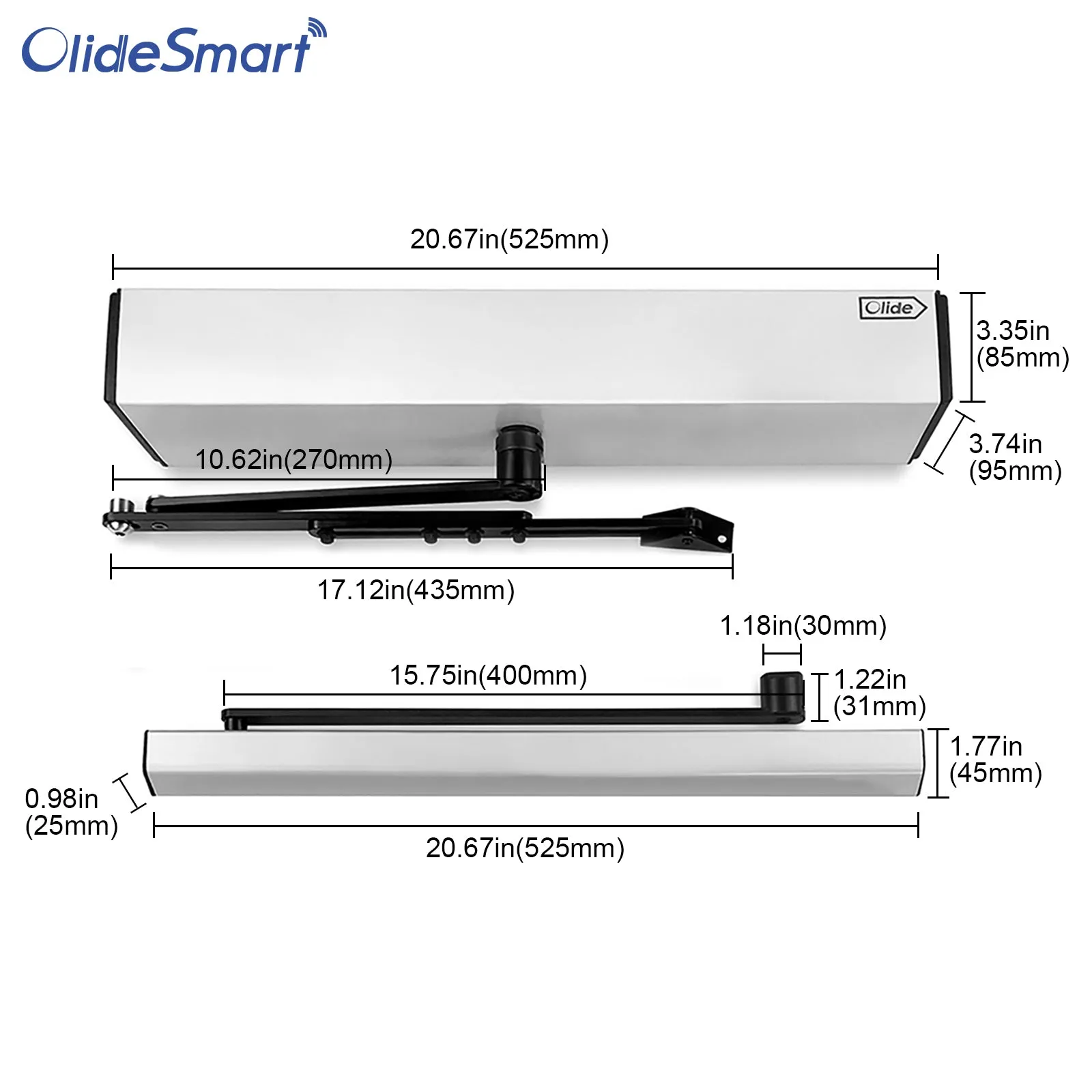

Environment temp:	-20~50°C	Operation size:	21.45''(L)3.35'' (W)3.74''(H)
Operation noise:	<55db	Max. door frame depth:	20cm/7.87"(with push arm)
