Product Details
＋

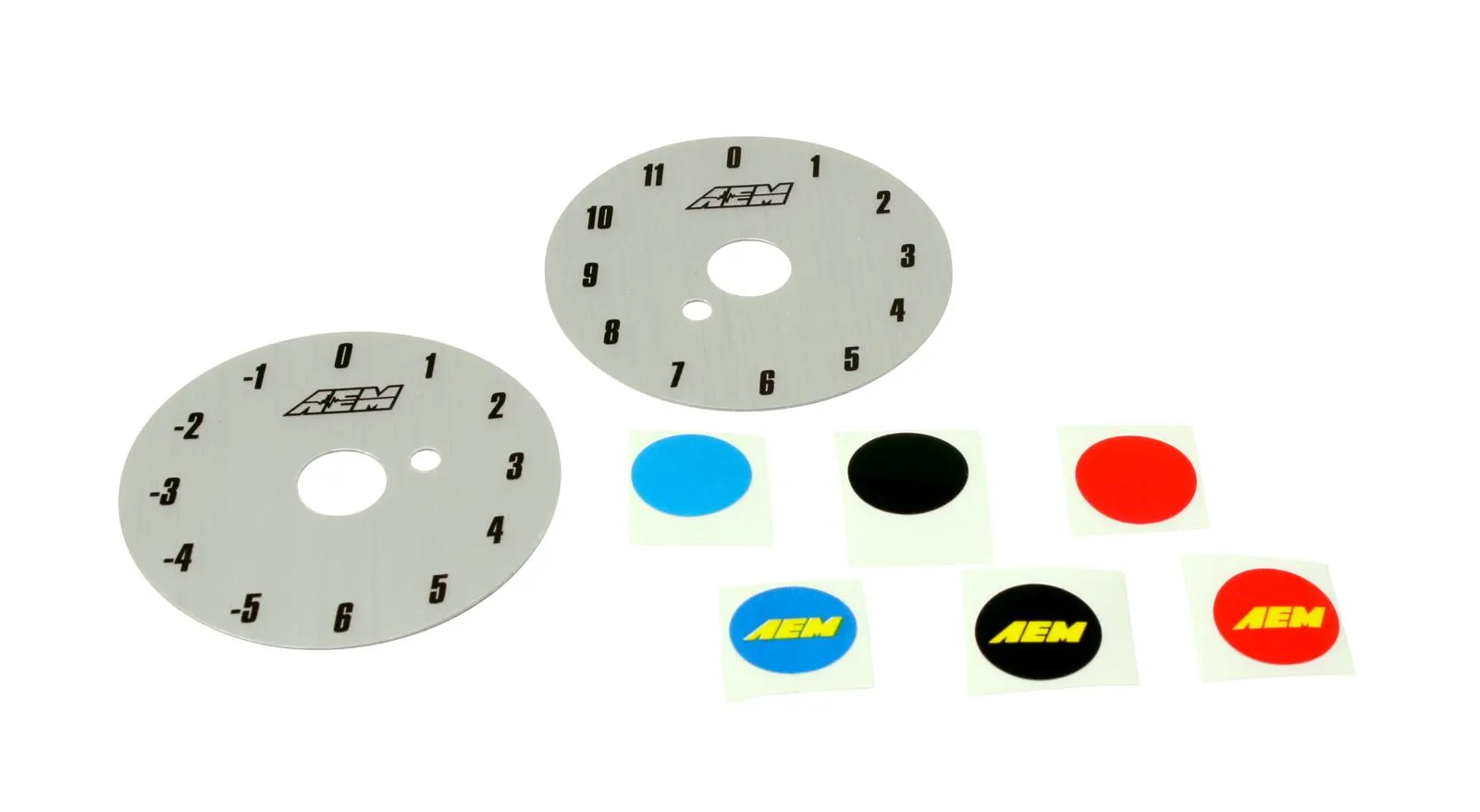

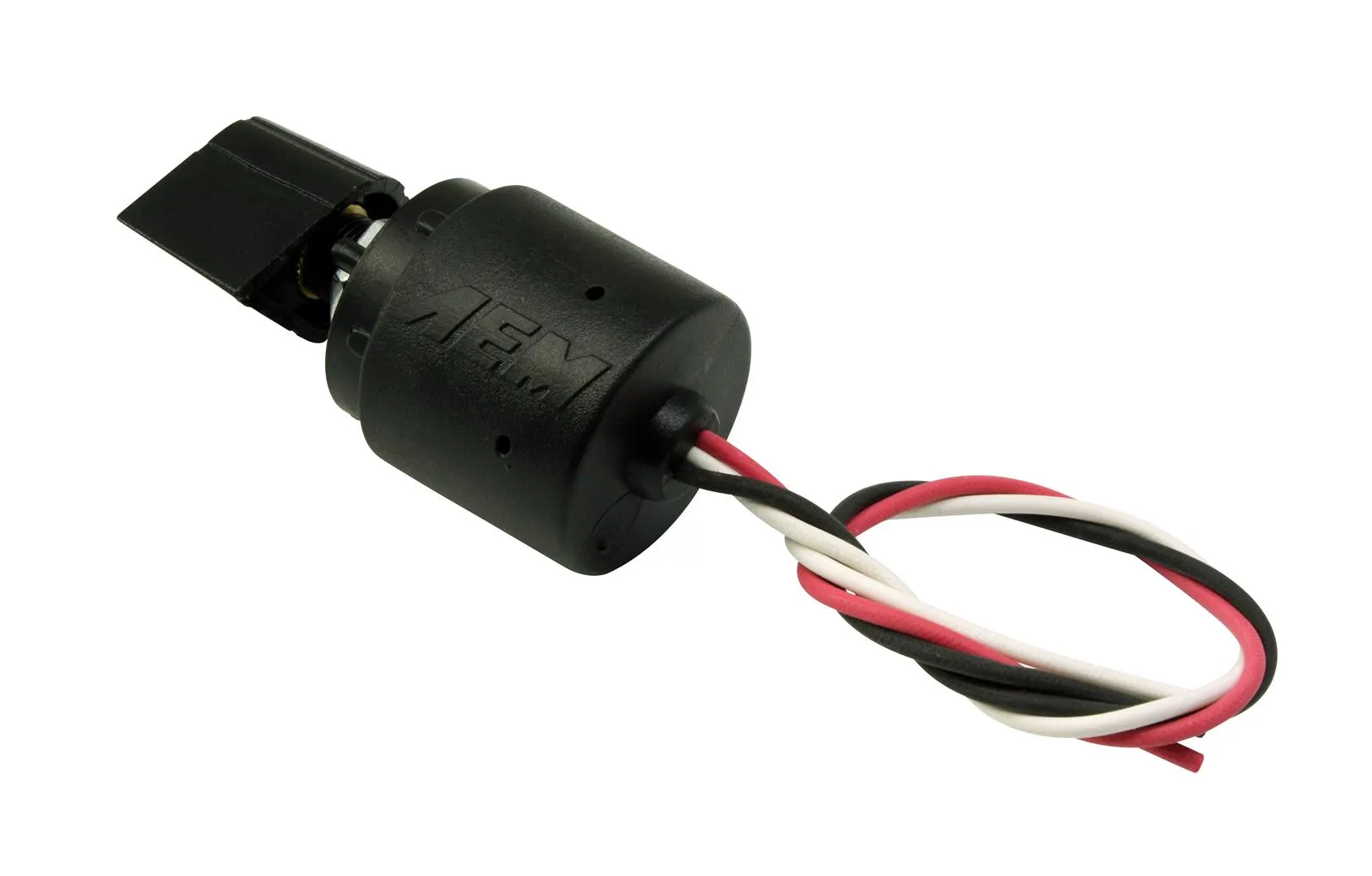

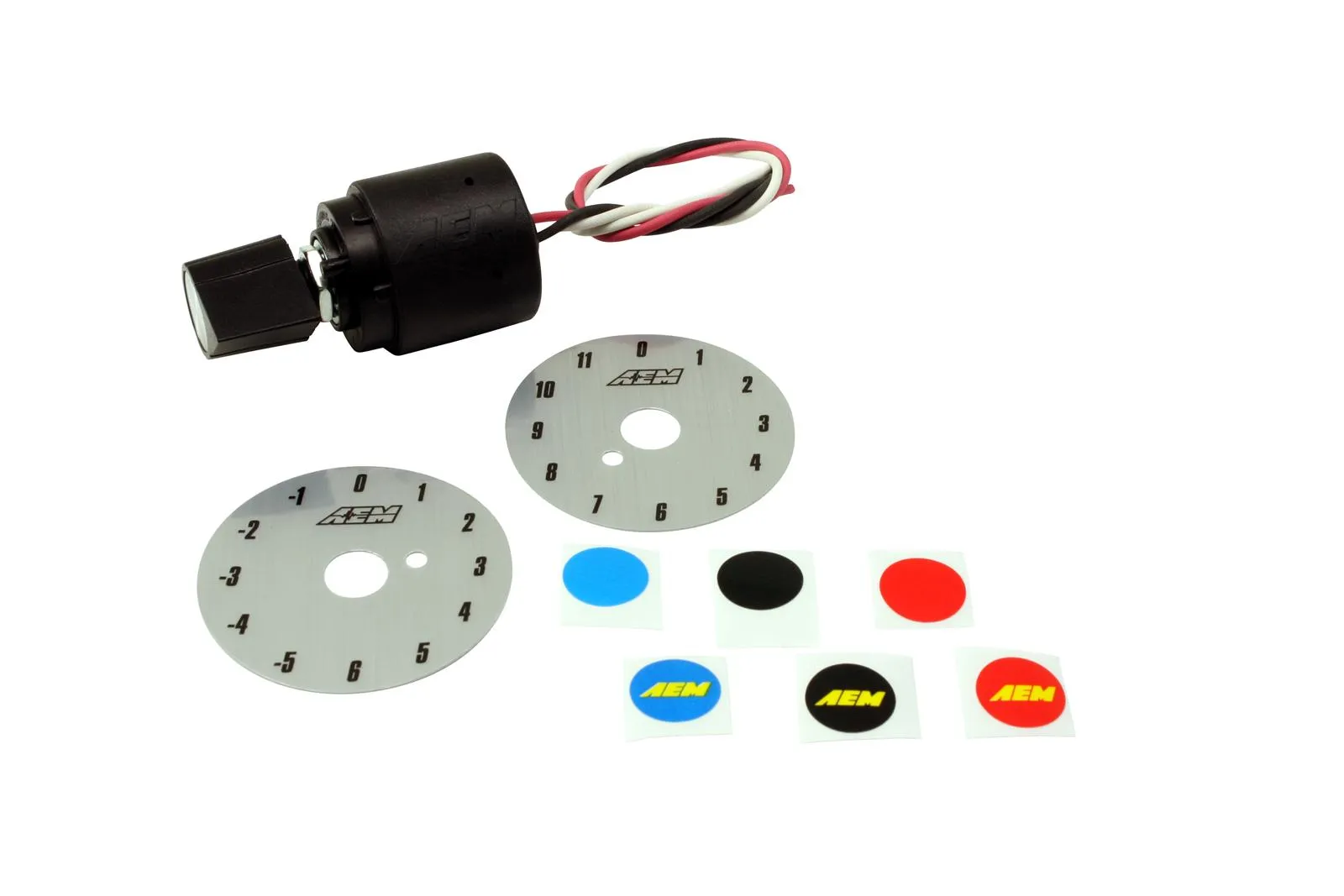

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to 6 and 0 to 11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors Trim potentiometer can be used with virtually any engine management system Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob Adjusts a number of trims, including ignition timing, fuel, boost, etc.
Features:
- 12 Position Trim Pot Performance Specifications
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Positions: 12
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Knob Set Screw: 1/16" Allen
- Supply Current: 5 Vdc
- Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc /- .5), 1 Black (Ground), 1 White (Output).
| Brand | AEM |
|---|---|
| Emission Code | 5 |
| Product Type | Trim Pot |
| Warranty | Limited 90 Day |
| UPC | 840879021573 |
| Part Number | 30-2056 |
