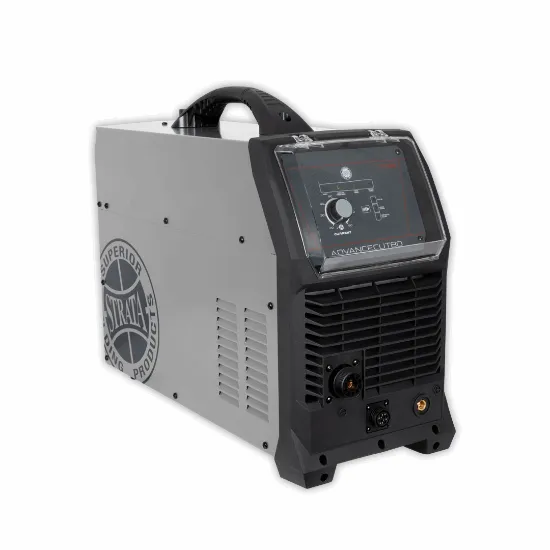

Strata Advance Cut 80A Inverter Three Phase Plasma Cutter - AdvanceCut80
Designed for industrial use, the AdvanceCut80 delivers a powerhouse performance with 80A output - capable of cutting through 30mm of carbon steel.
This plasma cutter is a perfect addition to any CNC setup, with a high duty cycle for continuous use.
The included Strata TH-125 Plasma Torch provides exceptional cutting quality and extended consumable life, making it a top choice for heavy-duty industrial applications.
Features:
Max Output (Plasma) - 80A
Max Production Cut Capacity - 30mm Carbon Steel
Input Power Supply - 400V Three-Phase 32A
IGBT module inverter technology for smooth & stable output, increased reliability, high duty cycle.
Heavy Duty Italian TH-125 plasma torch as standard for superior cutting performance and extended consumable life.
Designed for operating with automated CNC cutting equipment.
Pilot Arc Control System for increased cutting capability, especially for discontinuous cutting.

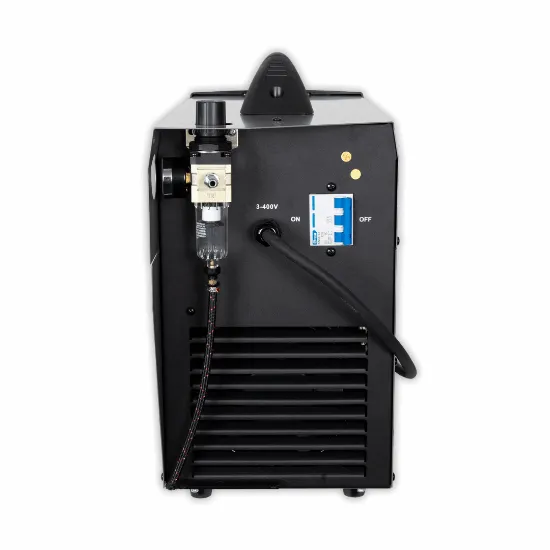

Protected external air regulator with water trap / filter for easy adjustment and serviceability.
Increased reliability and low EMF pollution with non HF arc starting system.
Intelligent plasma torch protection system protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.
Intelligent machine protection system - temperature, voltage and current sensors for increased reliability and safety.
Microprocessor Control System - superior and dynamic arc characteristics

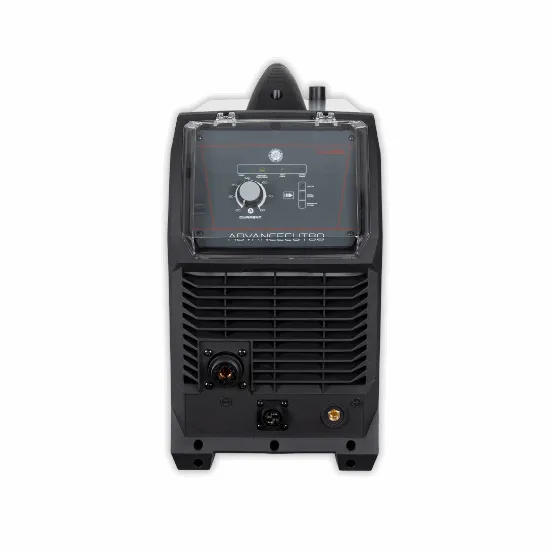

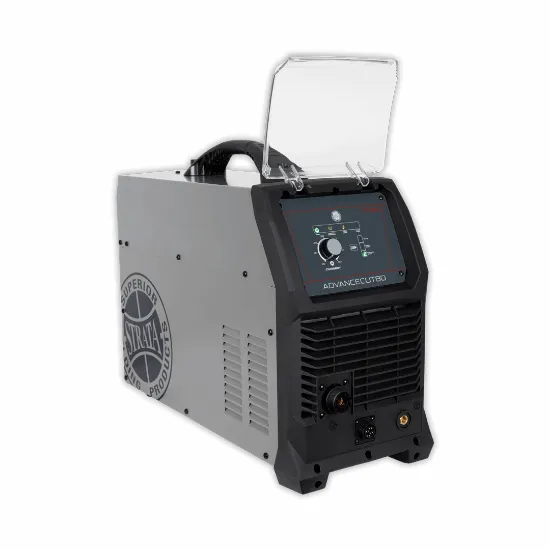

Industrial IP23 damage resistant casing with front panel protection.
Designed to work with generator power supply and protect from power surges. - Min Requirement 15KVA
Air flow manual activation switch - set and test air pressure without the need to trigger the torch with air flow manual activation switch.
Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
Production tested with 550V - Extreme stress testing in production for rugged reliability.
Accessories Include:

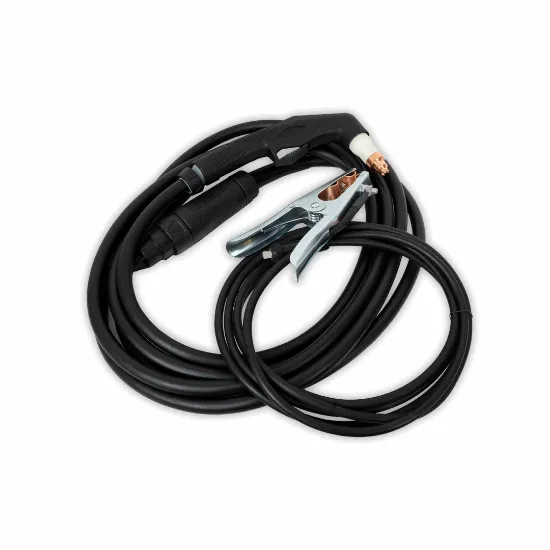

Strata TH-125 - 6m 125A Professional Plasma Torch
4m Earth Lead
1/4" Aro Style Male Coupler.
1/4" Air Flow Regulator.
32A 400V 3 Phase Plug.
Specifications:
| Input Power Supply: | 400V AC 3 phase 20A 50/60 Hz |
| Maximum Input Current: | 18A |
| Generator Capacity: | 15KVA |
| Duty Cycle: | 65A@90% 61A@100% |
| Standards: | EN60974 - 1:2012 |
| Compressed Air Requirement: | 295L / min 6 Bar |
| Input Power Tolerance: | /-10% |
| Plasma Output Current: | 20 - 80A |
| Plasma Production Cut Capacity Steel: | 30mm |
| Plasma Production Cut Capacity Aluminum: | 25mm |
| Plasma Severance Cut Capacity Steel: | 45mm |
| Insulation Class: | IP23 |
| Dimensions: |
640 x 240 x 445mn |
| Weight: | 23kg |
| Standards: | AS/IEC60974-1:2012 |
